| Brand Name: | Changsha Tongchuang Mechanical |
| Model Number: | 4WDB-M1.2/244F |
| MOQ: | 1 |
| Price: | $370 |
| Delivery Time: | 7 work days |
| Payment Terms: | D/P, T/T |

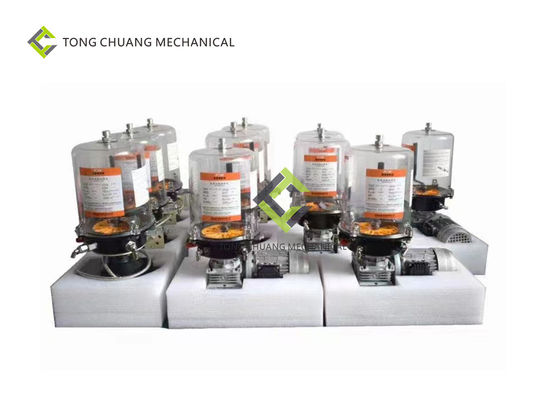

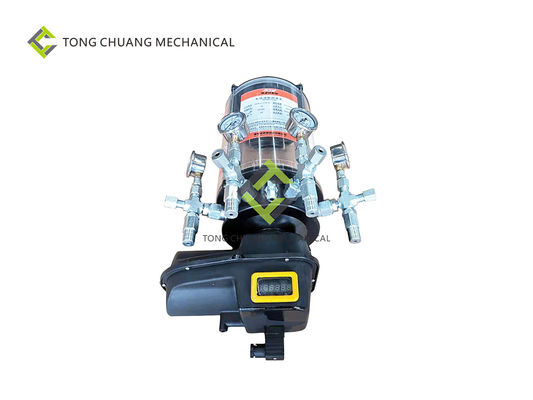

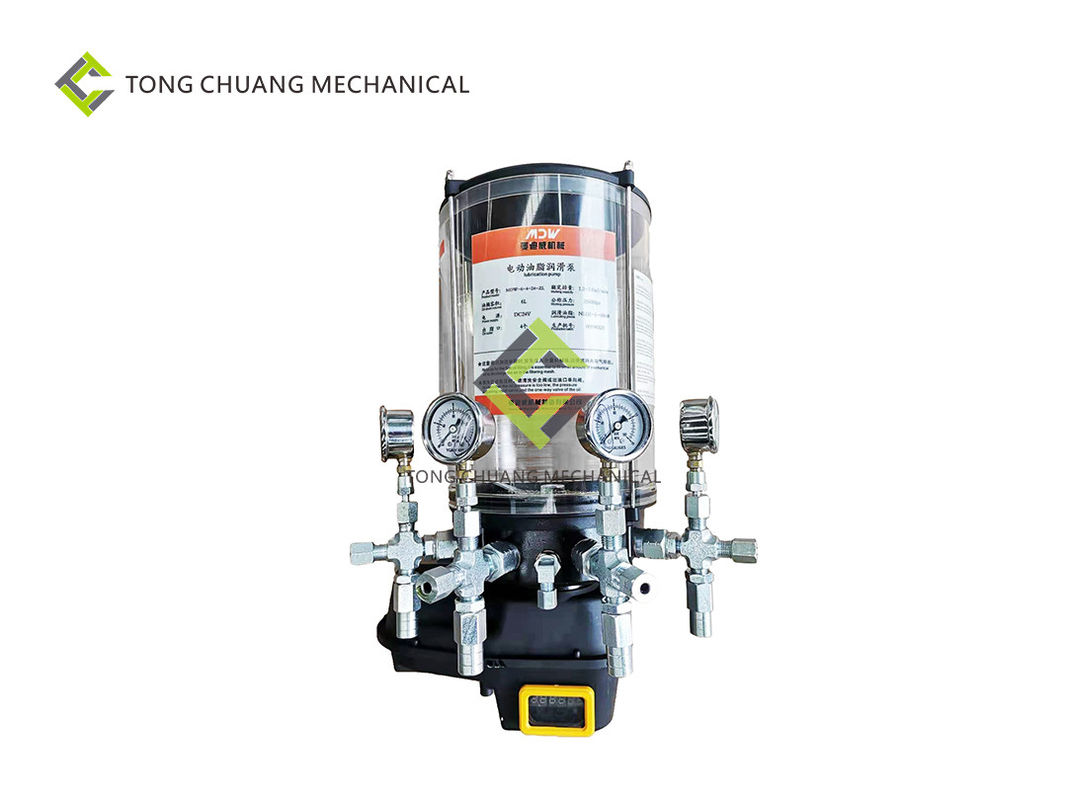

The lubrication pump of concrete batching plant parts
| The lubrication pump of concrete batching plant parts | |
| Name | Electric lubricating pump |
| Product name | Lubrication Pump, Electric Lubrication Pump, Electric Thick Oil Pump, Electric Grease Pump |
| Place of origin | Changsha, Hunan, China |
| Brand name | Changsha Tongchuang Mechanical |
| Applicable model | Mixing hosts Brand such as Sany, Zoomlion , Nanfang Road Machine, SICOMA, etc. |
| Specifications and models | 4WDB-M1.2/244F |
| Specification size | 480*200*200mm |
| Weight | 7.5KG |
| Oil drum volume | 6L |
| Voltage | DC24V |
| Quantity of Output port | 4 |
| Rated displacement | 1.2-2.0ml/min |
| Nominal pressure | 25MPa |
| Use | Provide lubricating grease for shaft end of concrete mixer. |
| Supply capacity | 100 Pieces/month |

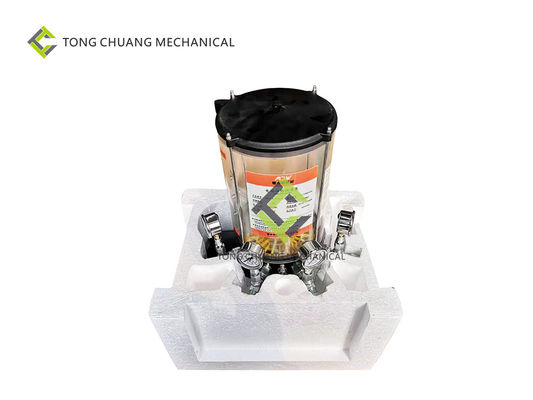

| Packing | Export standard packing 480*200*200mm |
| Minimum order | 1pcs |
| Price | $370 |
Product features and advantages:
1, The pump components are modularized, and various combinations are made according to the actual working conditions, so that the failure of a single pump component does not affect the grease outlet at other points.
2, Transparent resin oil drums are convenient for observing the grease storage capacity.
3, The pump components at each grease outlet are equipped with safety relief valves and pressure gauges. So as to monitor the working condition of lubricating points and lubricating pumps at any time.
4, Fully sealed structure of lubricating pumps, suitable for outdoor working conditions, waterproof and dustproof functions, suitable for forging, construction machinery, rubber and plastic, chassis and other equipment.
5, Equipped with built-in program controller, each grease outlet can be directly connected to lubricating points, or can be independently connected to progressive distributors.
Maintenance method:
1, Every time you add grease, it is advisable to inject a small amount of mechanical oil first, so that the air in the filter screen can be discharged.
2, In case of pump pressure loss or low pressure, please clean the safety relief valve or oil outlet check valve.
|
|
