| Brand Name: | Changsha Tongchuang Mechanical |
| Model Number: | P01609000597/outlet Sealed package |
| MOQ: | 10piece |
| Price: | $15-25/piece |
| Delivery Time: | 1 days |
| Payment Terms: | L/C, T/T, |

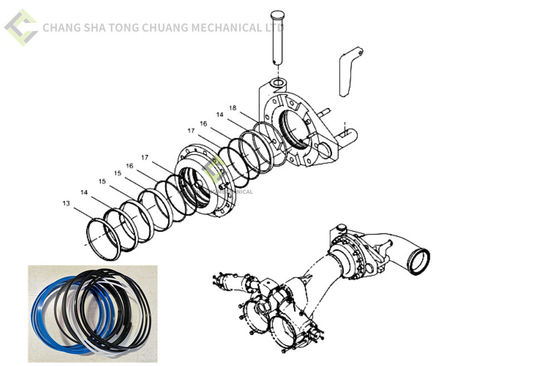

outlet Sealed package P01609000597 for S Valve Big End of Zoomlion Concrete Pump
Specification:
| outlet Sealed package P01609000597 for S Valve Big End of Zoomlion Concrete Pump | |||||
| POS. | CODE | STANDARD NO. | DESCRIPTION | SPEC | QTY |
| 13 | 000190201A0000007 | 0010202A0001 | J-type dust ring | d210 | 1 |
| 14 | 000190201A0000008 | 0010202A0002 | Yx-Seal ring | d210 | 2 |
| 15 | 000190201A0000009 | 0010202A0003 | Bearing | 2 | |
| 16 | 1081000456 | GB/T3452.1-1992 | O-ring | 212×5.3 | 2 |
| 17 | 000190201A0000010 | 0010202A0004 | Retalner ring | 219.3×210×2 | 2 |
| 18 | 001690207A0000001 | O-ring | 224*7 | 1 | |
Description:

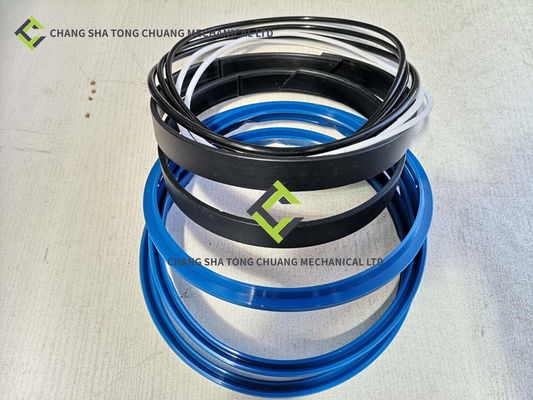

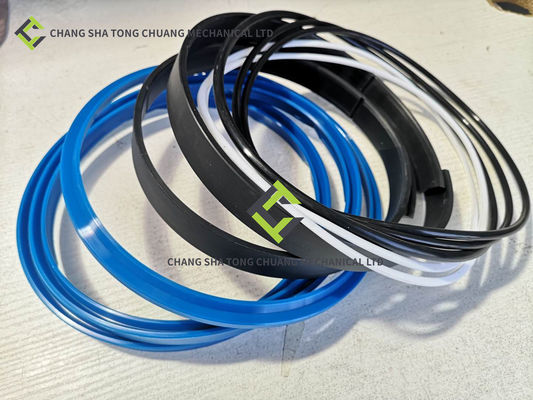

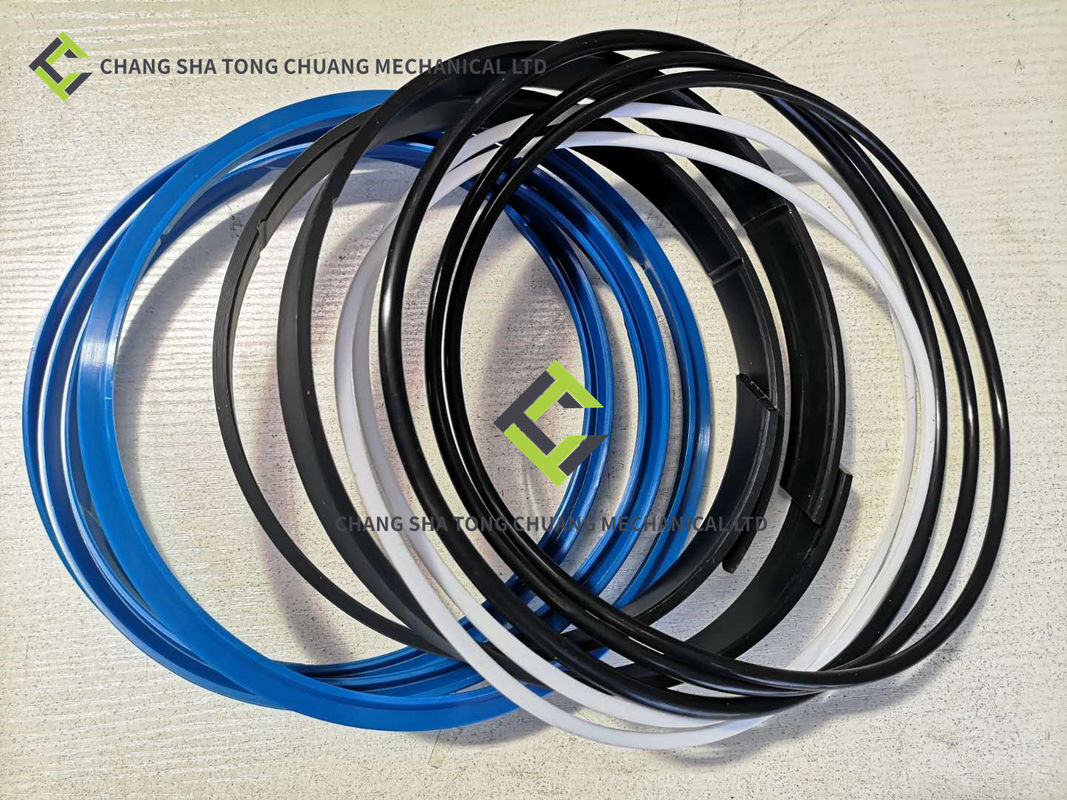

The sealing package P01609000597 for the S-Valve Big End outlet of Zoomlion Concrete Pump includes: one D210 J-type sealing ring, two D210 YX sealing rings, two 000190201A0000008 bearings, two 212×5.3 O-rings, two 219.3×210×2 retaining rings, and one 224*7 O-ring.
|
|
