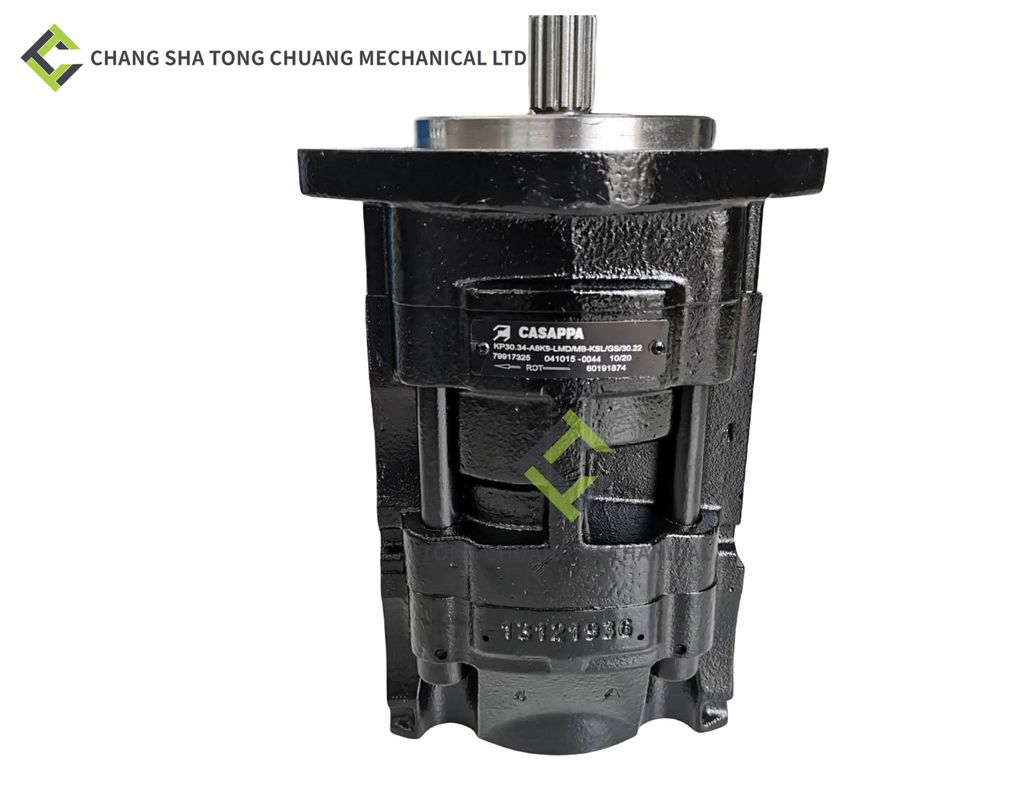

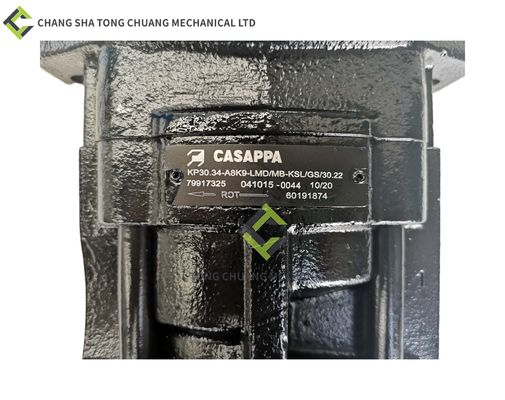

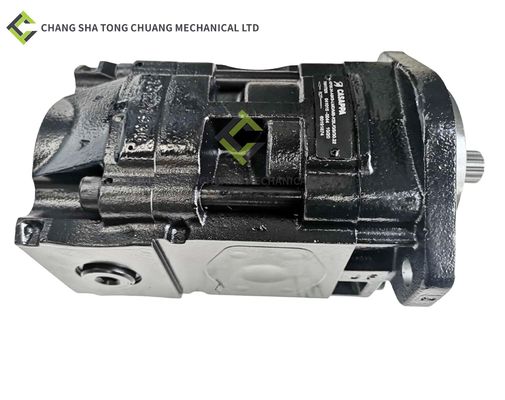

| Brand Name: | CASAPPA |
| Model Number: | KP30.34-A8K9-LMD/MB-KSL/GS/30.22 |
| MOQ: | 1piece |
| Price: | negotiate |
| Delivery Time: | 1-2days |
| Payment Terms: | L/C, T/T |

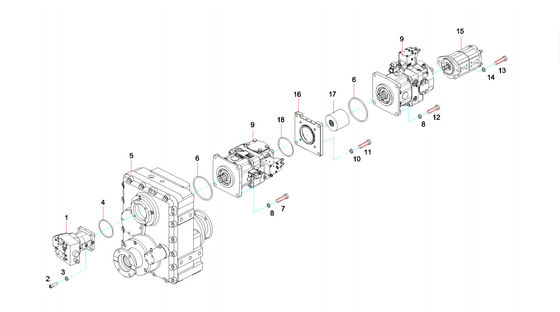

| Detailed list of spare parts of transfer box (PTO) and oil pump assembly | |||
| Number | Code | part name | Quantity |
| 1 | B220301000165 |
Arm rack oil pump A7VO55LRDS/63L-NZB01-S |
1 |
|---|---|---|---|
| 2 | A210204000226 |
Nut bolt M12×40GB70.1 12.9 |
4 |
| 3 | A210401000002 |
Washer 12GB93 |
4 |
| 4 | A210608000320 |
O ring 125×3.55GB3452.1 |
1 |
| 5 | 10234443 |
Transfer case/PTO | 1 |
| 6 | A210609000015 |
O ring 165×3.55GB3452.1 |
2 |
| 7 | A210110000078 |
Screw M20×65GB5783 |
4 |
| 8 | A210401000006 |
Washer 20GB93 | 8 |
| 9 | B220304000083 |
Main oil pump A11VLO190LRDU2 | 2 |
| 10 | A210401000004 |
Washer 16GB93 |
4 |
| 11 | A210204000195 |
Nut bolt M16×40GB70.1 12.9 |
4 |
| 12 | A210111000233 |
Screw M20×55GB5783 | 4 |
| 13 | A210111000101 |
Screw |
2 |
| 14 | A210405000001 |
Washer 12GB97.1 | 2 |
| 15 | B220301000403 |
Double gear pump KP30.34-A8K9-LMD/MB-KSL/GS/30.22 | 1 |
| 16 | 10809191 |
190/190 connecting flange |
1 |
| 17 | B221700000011 |
spline housing | 1 |
| 18 | A210609000303 |
O ring | 1 |
|
|
| Brand Name: | CASAPPA |
| Model Number: | KP30.34-A8K9-LMD/MB-KSL/GS/30.22 |
| MOQ: | 1piece |
| Price: | negotiate |
| Packaging Details: | Export standards |
| Payment Terms: | L/C, T/T |
| Detailed list of spare parts of transfer box (PTO) and oil pump assembly | |||
| Number | Code | part name | Quantity |
| 1 | B220301000165 |
Arm rack oil pump A7VO55LRDS/63L-NZB01-S |
1 |
|---|---|---|---|
| 2 | A210204000226 |
Nut bolt M12×40GB70.1 12.9 |
4 |
| 3 | A210401000002 |
Washer 12GB93 |
4 |
| 4 | A210608000320 |
O ring 125×3.55GB3452.1 |
1 |
| 5 | 10234443 |
Transfer case/PTO | 1 |
| 6 | A210609000015 |
O ring 165×3.55GB3452.1 |
2 |
| 7 | A210110000078 |
Screw M20×65GB5783 |
4 |
| 8 | A210401000006 |
Washer 20GB93 | 8 |
| 9 | B220304000083 |
Main oil pump A11VLO190LRDU2 | 2 |
| 10 | A210401000004 |
Washer 16GB93 |
4 |
| 11 | A210204000195 |
Nut bolt M16×40GB70.1 12.9 |
4 |
| 12 | A210111000233 |
Screw M20×55GB5783 | 4 |
| 13 | A210111000101 |
Screw |
2 |
| 14 | A210405000001 |
Washer 12GB97.1 | 2 |
| 15 | B220301000403 |
Double gear pump KP30.34-A8K9-LMD/MB-KSL/GS/30.22 | 1 |
| 16 | 10809191 |
190/190 connecting flange |
1 |
| 17 | B221700000011 |
spline housing | 1 |
| 18 | A210609000303 |
O ring | 1 |
