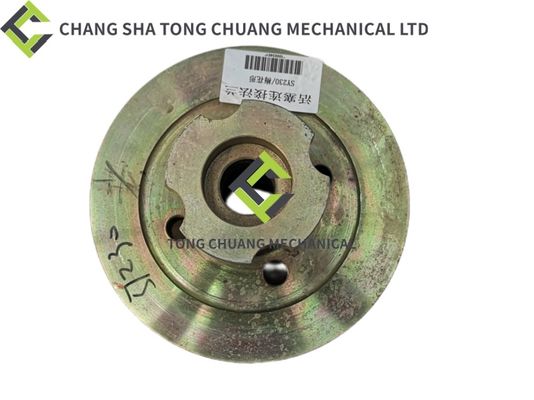

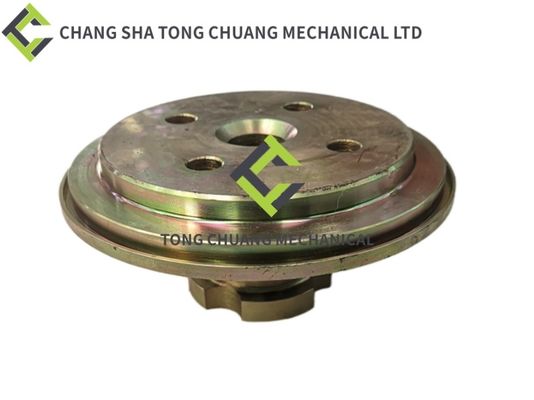

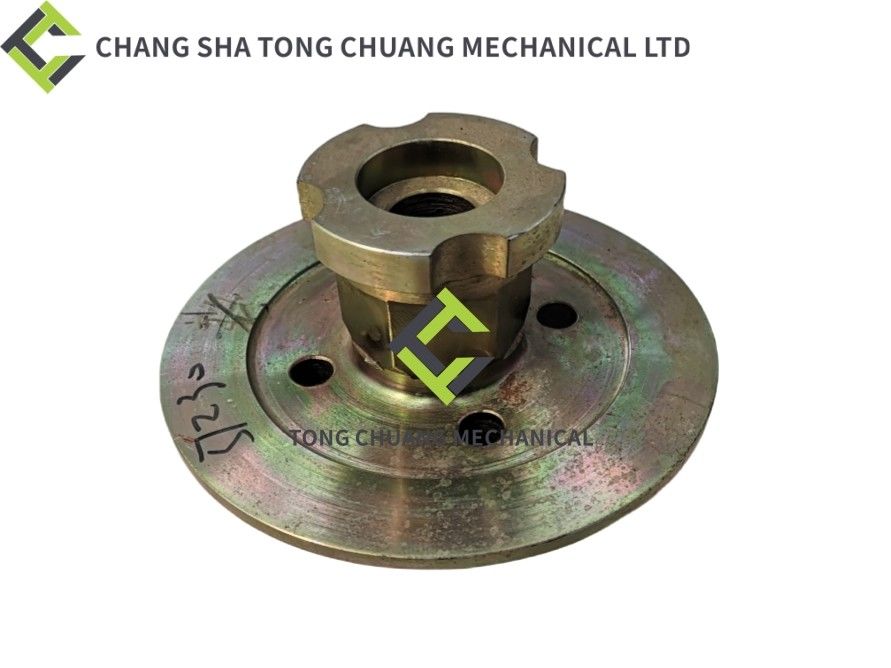

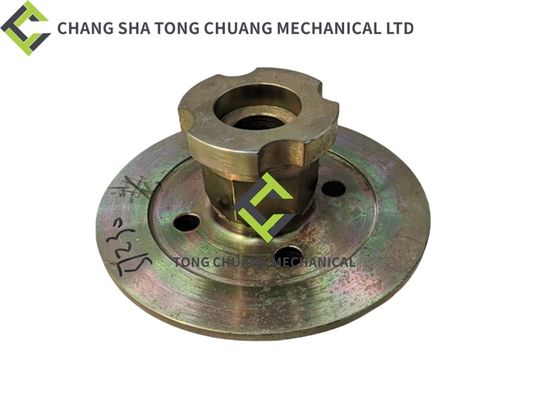

The concrete piston connecting flange in a concrete pump serves an essential function in the operation and performance of the pumping system. Here is a description of the functions and roles of the concrete piston connecting flange:

Piston Stability: The primary function of the concrete piston connecting flange is to provide stability and support to the concrete piston. It connects the piston to the piston rod, ensuring a secure attachment and preventing any movement or dislodgment during the pumping process. This stability is crucial for maintaining the proper alignment and operation of the piston, allowing for efficient and effective pumping of concrete.

Seal Integrity: The connecting flange plays a vital role in maintaining the seal integrity of the pumping system. It forms a tight connection between the piston and the cylinder, preventing any leakage of hydraulic fluid or concrete. The flange ensures that the pressure generated by the hydraulic system is effectively transferred to the piston, enabling the forceful movement necessary for concrete pumping without any loss of pressure or efficiency.

Force Transmission: The concrete piston connecting flange facilitates the transmission of force from the hydraulic system to the piston. As the hydraulic fluid exerts pressure on the piston, the connecting flange ensures that this force is evenly distributed and transmitted to the concrete being pumped. This allows for a consistent and powerful movement of the piston, resulting in effective concrete delivery and placement.

Durability and Reliability: The connecting flange is designed to be durable and resistant to the high pressures and forces involved in concrete pumping. It is typically made of robust materials, such as steel or alloy, to withstand the demanding conditions of the pumping process. The reliable connection provided by the flange ensures long-lasting performance and minimizes the risk of breakdowns or malfunctions during concrete pumping operations.

Maintenance and Replacement: The connecting flange allows for easy maintenance and replacement of the concrete piston. It is designed to be accessible and removable, facilitating inspections, cleaning, and repairs. When necessary, the flange can be replaced separately from the entire piston assembly, reducing downtime and maintenance costs.
