Product Description:

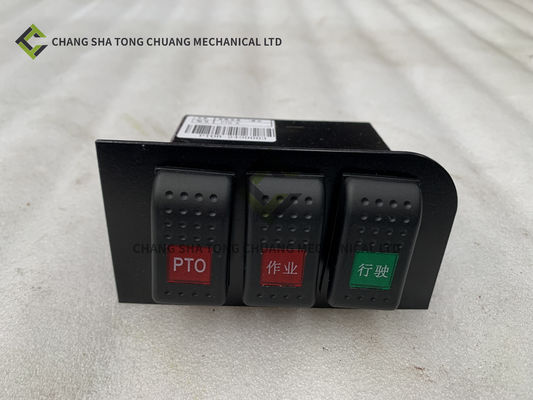

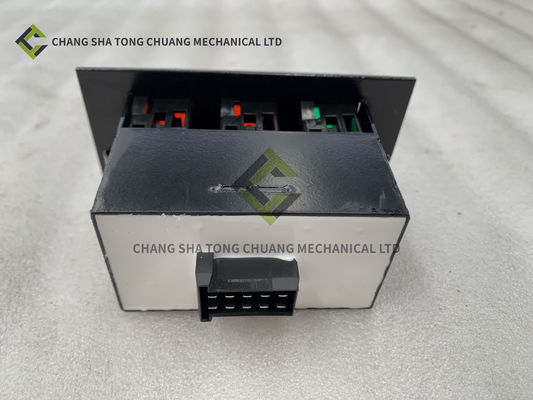

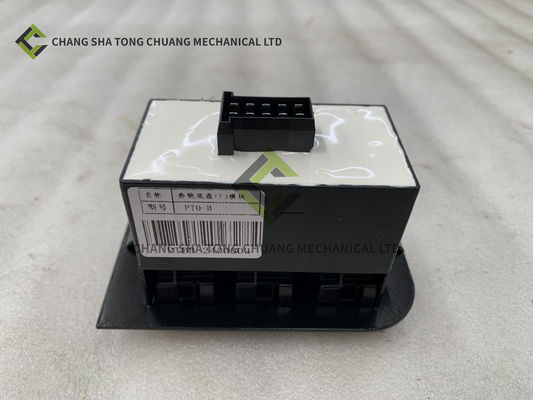

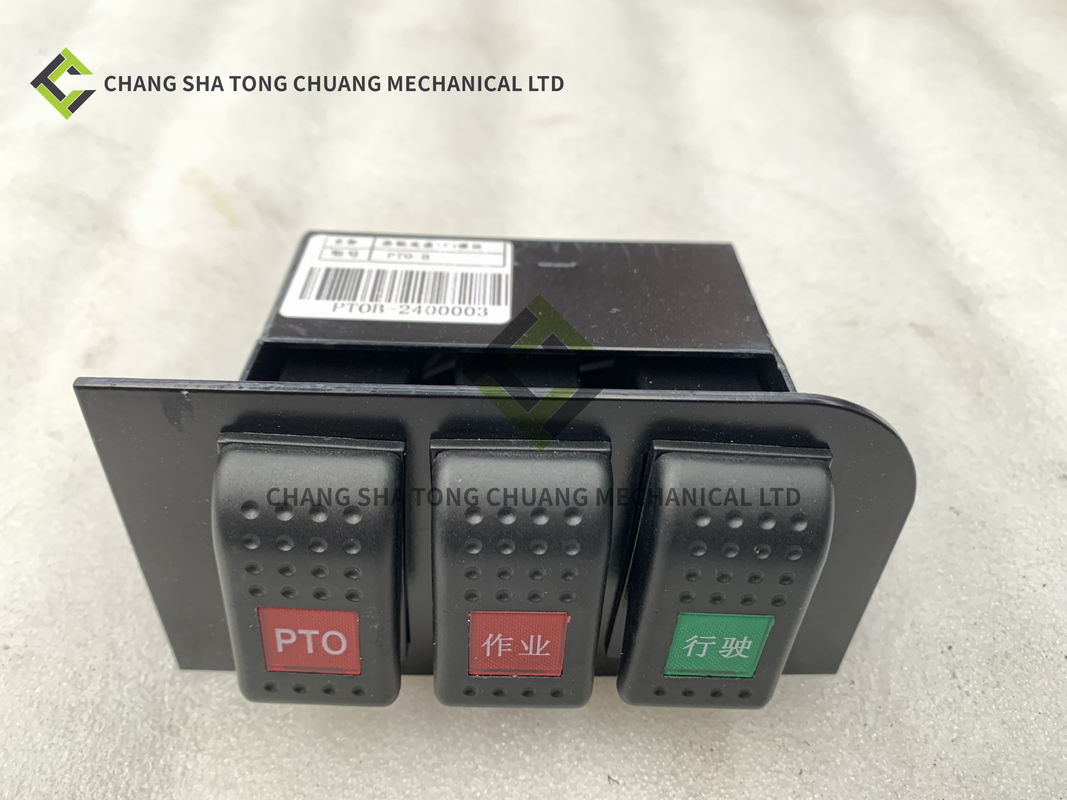

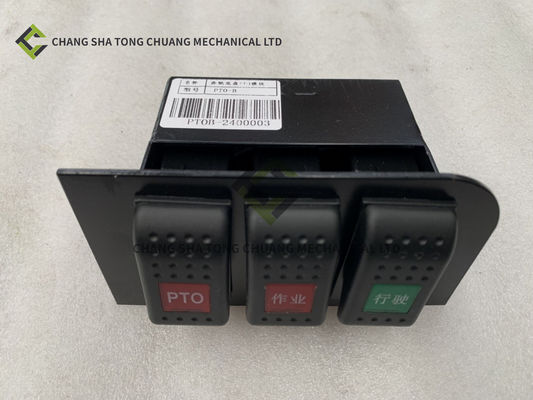

The PTO (Power Take-Off) switch in the driver's cabin of a concrete pump truck serves an important function in switching between driving and operating modes. This switch enables the operator to control the engagement and disengagement of the PTO, which is responsible for transferring power from the vehicle's engine to drive the hydraulic system used for concrete pumping.

The functionality of the PTO switch includes:

1. Mode selection: The PTO switch allows the operator to select the desired mode of operation for the concrete pump truck. When the switch is engaged, the PTO connects the vehicle's engine power to the hydraulic system, enabling the pump and other hydraulic components to operate. Conversely, disengaging the switch disconnects the PTO, allowing the truck to be driven without activating the hydraulic system.
2. Power transmission: The PTO switch controls the flow of power from the engine to the hydraulic system. When the switch is engaged, the PTO transfers engine power to drive the hydraulic pump, which powers the concrete pump and other hydraulic functions. This allows the operator to activate and control the pumping and operation of the concrete boom.
3. Safety and control: The PTO switch provides a safety measure by allowing the operator to control the engagement and disengagement of the PTO. This ensures that the hydraulic system is only active when needed, preventing accidental operation or unintended engagement. It allows the operator to maintain control over the vehicle's driving and operating modes, promoting safe and efficient operation of the concrete pump truck.
4. Power management: The PTO switch helps manage power usage in the concrete pump truck. By selectively engaging the PTO when hydraulic power is required, the switch allows the operator to conserve engine power during driving or other non-operational periods. This helps optimize fuel efficiency and reduces wear on the engine and hydraulic system.
5. Convenience and functionality: The PTO switch provides convenience by allowing the operator to switch between driving and operating modes from within the driver's cabin. This eliminates the need for manual engagement or disengagement of the PTO outside the vehicle, streamlining the transition between driving and concrete pumping operations.
