Drilling Rig Spare Parts
Created with Pixso. Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15

Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15

Brand Name: JZJX
Model Number: JZSR150
MOQ: 1piece
Price: negotiate
Delivery Time: 20-30 days
Payment Terms: L/C, Western Union, T/T
Detail Information
Place of Origin:
Chang sha China
Material:
Metal
Model:
JZSR150
Color:
Blue
Warranty:
1 Year
Pressure Pile Driver:
Hydraulic Pile Driver
After-sales Service:
1 Year
Condition:
New
Origin:
Chang Sha,Hunan, China
Size:
11000*4950*3360mm
Maximum Pile Driving Force:
150tf
Minimum Pile Driving Speed:
1.3 M/min
Maximum Pile Driving Speed:
9 M/min
Lifting/lowering Travel:
1.4m
Maximum Hoisting Length For Center Piles:
14m
Long Ship:
14.1kpa
Short Ship:
14.2kpa
Border Pile Spacing:
660mm
Minimum Corner Pile Spacing:
657mm
Packaging Details:
Export standards
Highlight:

Metal Construction Hydraulic Static Pile Press

,

14m Hydraulic Static Pile Press

,

JZSR15 Hydraulic Static Pile Press

Product Description

Features and advantages:

1) Large counterweight area at the rear, small side pile distance and large side pile force
2) Hanging side piles are arranged at three points, which can hold side piles, corner piles and side piles
3) High pile pressing force, fast pile pressing speed, compact machine, small size, flexible and convenient
4) When pressing the side pile of the middle pile, it can be operated facing the pile position for easy observation
5) Independent cooling system
6) Easy to maintain and beautiful
7) Telescopic cantilever, open when working, retract when transporting, saving time for assembly and disassembly

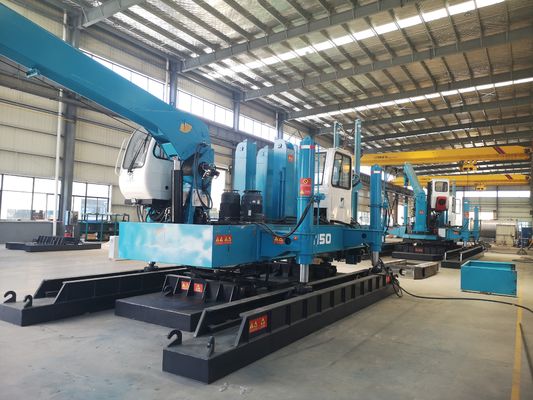

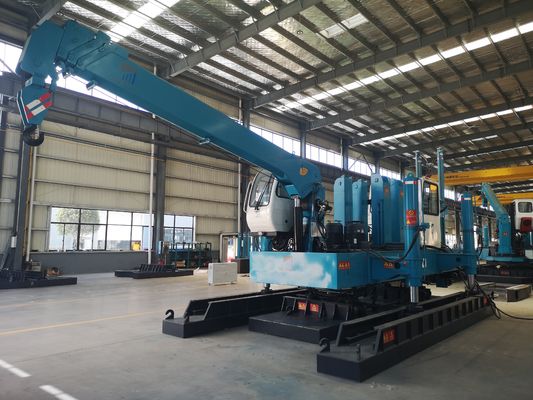

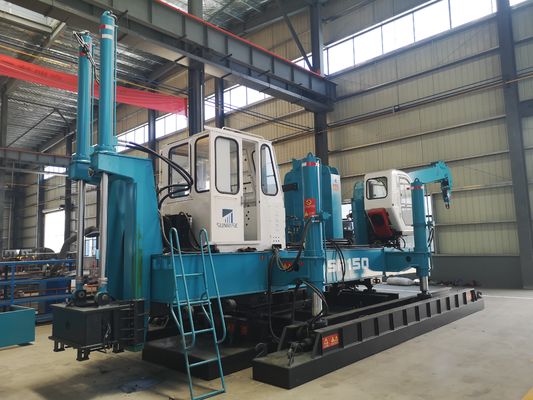

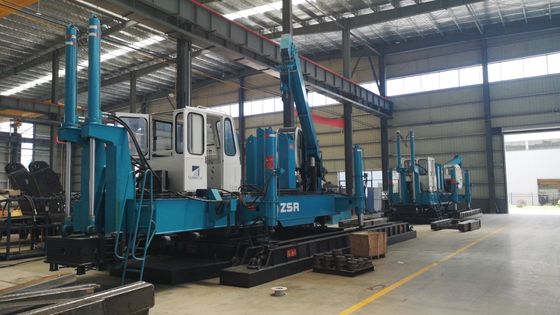

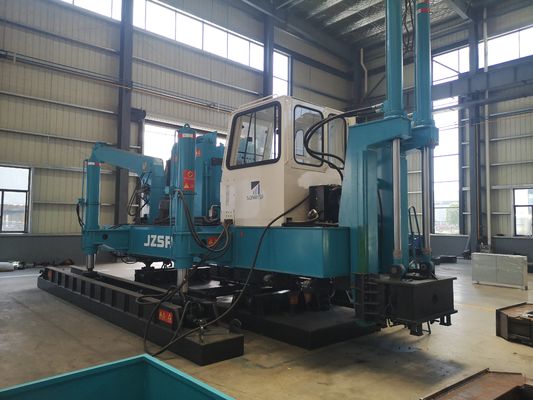

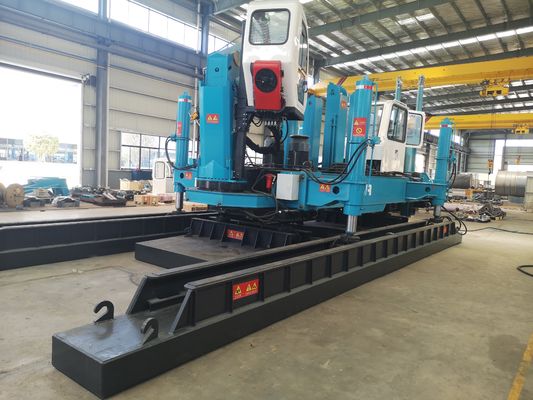

Product details:

Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15 0Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15 1Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15 2Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15 3Hydraulic Static Pile Press for Metal Construction Maximum Hoisting Length 14m JZSR15 4
