| Brand Name: | Domestic |
| Model Number: | Z08TSL/Z10TSL/Z12TSL |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T |
Product Decription
The platform height of the liquid driven scissor type aerial work platform is lower than that of the arm type aerial work platform, reaching up to 5.8-13.8 meters. Powered by batteries, more environmentally friendly. Due to the absence of exhaust emissions or loud noise during operation, they are very suitable for indoor operation.

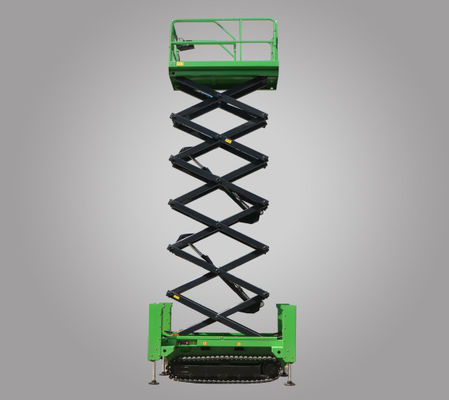

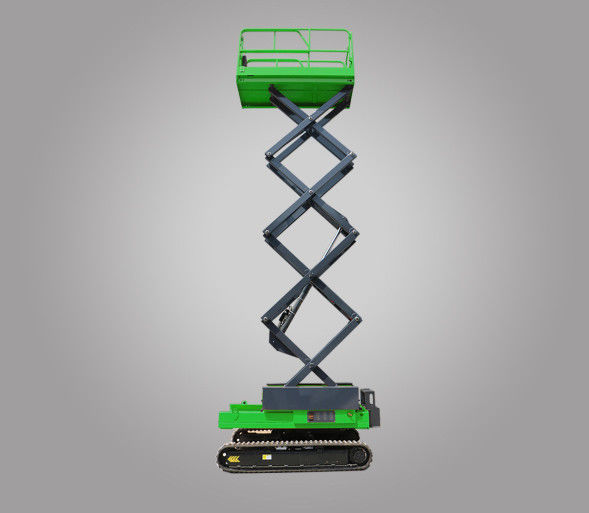

Product Picture
| Model | Z08TSL | Z10TSL | Z12TSL |

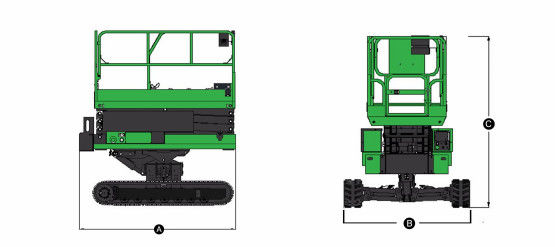

| Size | |||
| Maximum working height | 10.3m | 12m | 14m |
| Maximum platform height | 8.3m | 10m | 12m |
| Platform size | 2.28*1.136*1.26m | 2.28*1.136*1.26m | 2.28*1.136X1.26m |
| Vehicle length | 2.53m | 2.53m | 2.53m |
| Vehicle width | 1.37m | 1.37m | 1.37m |
| Overall height (unfolded fence) | 2.835m | 2.965m | 3.095m |
| Overall height (folded national fence) | 2.327m | 2.457m | 2.587m |
| Platform horizontal extension | 0.9m | 0.9m | 0.9m |
| wheelbase | 1.8m | 1.8m | 1.8m |
| Whole machine weight | 3398kg | 3698kg | 3998kg |
| Performance | |||
| Safe working load | 250kg | 250kg | 250kg |
| Extend platform safety workload | 113.3kg | 113.3kg | 113.3kg |
| Maximum number of employees | 2 | 2 | 2 |
| High speed driving speed | 2-3km/h | 2-3km/h | 2-3km/h |
| Low speed driving speed | 0.8-1.2km/h | 0.8-1.2km/h | 0.8-1.2km/h |
| The boldest slope ability (retracted) | 36% | 36% | 36% |
| Lifting speed - lifting | 6-8m/min | 6-8m/min | 6-8m/min |
| Lifting speed - descent | 10-12m/min | 10-12m/min | 10-12m/min |
| Vertical leveling angle - front side | ±1 5 ° | ±15° | ±1 5 ° |
| Vertical leveling angle - rear side | ±20° | ±20° | ±20° |
| Horizontal leveling angle | ±17° | ±17° | ±17° |
| Hydralic System | |||
| Hydraulic oil capacity | 32L | 32L | 32L |
| Power | |||
| Battery | 8x6V/200Ah | 8x6V/200Ah | 8x6V/200Ah |
| Charger | 30A | 30A | 30A |
|
|
