| Brand Name: | Domestic |
| Model Number: | V14/V16 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T |
Product Decription
The maximum working height of the electric articulated boom high-altitude work platform is 11.5 meters to 22.5 meters, and the maximum load is 350 kilograms. The design of the battery and the arm style structure provide a sustainable and flexible solution for entering elevated areas. According to your work needs, lithium batteries and lead-acid batteries can be optionally equipped.

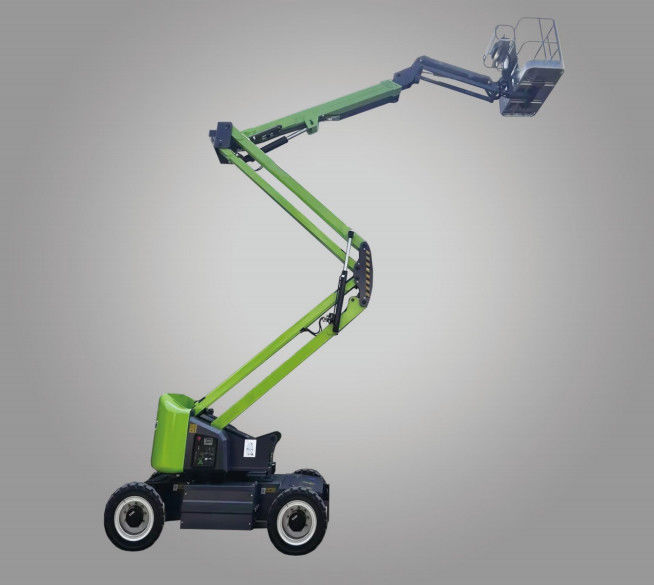

Product Picture
Product parameters
| Model | V14 | V16 |
| Type | ||
| Maximum working height | 15.8m | 17.7m |
| Maximum platform height | 13.8m | 15.7m |
| Maximum crossing height | 7.0m | 7.3m |

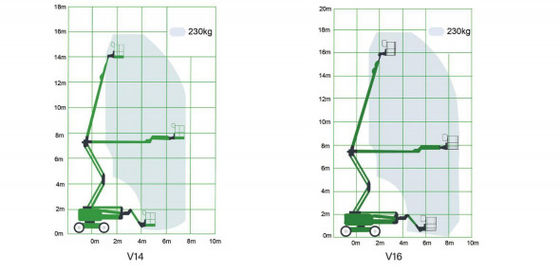

| Maximum homework radius | 7.5m | 8.9m |
| Platform size (length x width) | 1.4*0.76m | 1.4*0.76m |
| Vehicle Length - Collection | 6.5m | 7.2m |
| Vehicle width | 1.76m | 1.90m |
| Vehicle Height - Collection | 2.0m | 2.0m |
| wheelbase | 2.0m | 2.0m |
| Ground clearance (center) | 0.25m | 0.25m |
| Performance | ||
| Rated bearing capacity | 230kg | 230kg |
| Number of people supported by the platform | 2 | 2 |
| Platform rotation range | ±80° | ±80° |
| Rotary table rotation | ±70° | ±70° |
| Range of boom amplitude | 355° | 355 |
| Driving speed (receiving status) | 5.1km/h | 5.0km/h |
| Driving and climbing slopes | 30% | 30% |
| Maximum working slope | 3° | 3° |
| Outer turning radius | 3.2m | 3.45m |
| Drive steering form | 2×2 | 2×2 |
| Whole machine weight | 5960kg | 6630kg |
| tyre | 250-15 | 250-15 |
| Power | ||
| Battery | 48V/320Ah | 48V/320Ah |
| Pump motor power | 4kw | 4kw |
| Power of walking motor | 3.3kw | 3.3kw |
| control voltage | 24V | 24V |
| Charger | 48V/35A | 48V/35A |
| Hydraulic oil tank | 45L | 45L |
| Emergency power system | 24v electric | 24v electric |
|
|
