| Brand Name: | Domestic |
| Model Number: | S14C/S16C |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T |
Product Decription
The maximum working height of the crawler spider aerial work platform is 10 meters to 18 meters, and the maximum load is 200 kilograms. Due to its compact design and light weight, the product is easy to move and store. Its flexible steering capability provides precise positioning and efficient operation. The product is also equipped with anti slip and durable features
The rubber tracks used ensure that it can walk on uneven terrain.

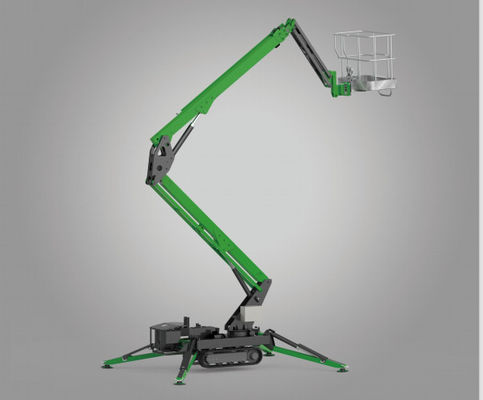

Product Picture

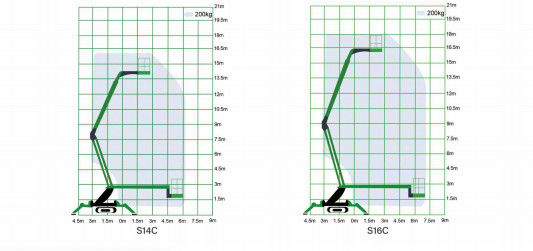

Product parameters
| model | S14C | S16C |
| size | ||
| Maximum working height | 16m | 18m |
| Maximum platform height | 14m | 16m |
| Maximum homework radius | 6.2m | 7.1m |
| Platform size (length x width x height) | 1.1X0.7X1.1m | 1.1X0.7X1.1m |
| Vehicle length | 5.2m | 5.3m |
| Vehicle width | 0.85m | 0.85m |
| Vehicle height | 2.0m | 2.0m |
| Leg deployment length | 4m | 4m |
| Leg deployment width | 4m | 4m |
| Small arm amplitude range | 90° | 90° |
| Working bucket rotation range | ±80° | ±80° |
| Rotation range of turntable | 360 ° continuous | 360 ° continuous |
| Whole machine weight | 1900kg | 2200kg |
| performance | ||
| Rated bearing capacity | 200kg | 200kg |
| Carrying capacity | 2 | 2 |
| Driving speed | 1.5km/h | 1.5km/h |
| Driving and climbing slopes | 25% | 25% |
| Maximum working slope | 10° | 10° |
| power | ||
| Motor | 48V/5kw | 48V/5kw |
| lithium battery | 48V/300Ah | 48V/300Ah |
| control voltage | 12V | 12V |
| Charger | 48V/35A | 48V/35A |
| Hydraulic oil tank | 35L | 35L |
|
|
| Brand Name: | Domestic |
| Model Number: | S14C/S16C |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Payment Terms: | L/C, D/A, D/P, T/T |
Product Decription
The maximum working height of the crawler spider aerial work platform is 10 meters to 18 meters, and the maximum load is 200 kilograms. Due to its compact design and light weight, the product is easy to move and store. Its flexible steering capability provides precise positioning and efficient operation. The product is also equipped with anti slip and durable features
The rubber tracks used ensure that it can walk on uneven terrain.
Product Picture
Product parameters
| model | S14C | S16C |
| size | ||
| Maximum working height | 16m | 18m |
| Maximum platform height | 14m | 16m |
| Maximum homework radius | 6.2m | 7.1m |
| Platform size (length x width x height) | 1.1X0.7X1.1m | 1.1X0.7X1.1m |
| Vehicle length | 5.2m | 5.3m |
| Vehicle width | 0.85m | 0.85m |
| Vehicle height | 2.0m | 2.0m |
| Leg deployment length | 4m | 4m |
| Leg deployment width | 4m | 4m |
| Small arm amplitude range | 90° | 90° |
| Working bucket rotation range | ±80° | ±80° |
| Rotation range of turntable | 360 ° continuous | 360 ° continuous |
| Whole machine weight | 1900kg | 2200kg |
| performance | ||
| Rated bearing capacity | 200kg | 200kg |
| Carrying capacity | 2 | 2 |
| Driving speed | 1.5km/h | 1.5km/h |
| Driving and climbing slopes | 25% | 25% |
| Maximum working slope | 10° | 10° |
| power | ||
| Motor | 48V/5kw | 48V/5kw |
| lithium battery | 48V/300Ah | 48V/300Ah |
| control voltage | 12V | 12V |
| Charger | 48V/35A | 48V/35A |
| Hydraulic oil tank | 35L | 35L |
