| Brand Name: | Domestic |
| Model Number: | J24Li/J26Li |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T |
Product Decription
The maximum working height of the crawler spider aerial work platform is 10 meters to 18 meters, and the maximum load is 200 kilograms. Due to its compact design and light weight, the product is easy to move and store. Its flexible steering capability provides precise positioning and efficient operation. The product is also equipped with anti slip and durable features
The rubber tracks used ensure that it can walk on uneven terrain.

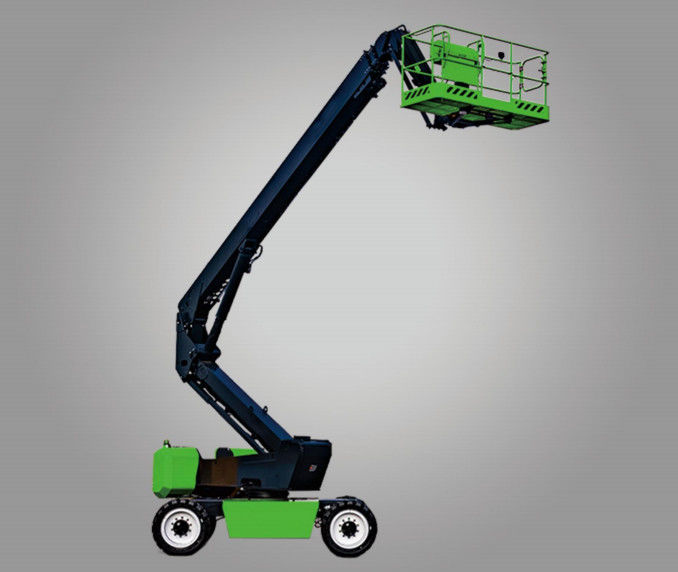

Product Picture

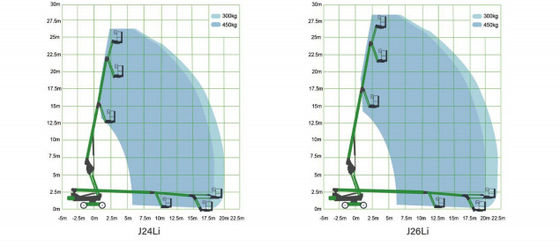

Parameters
| model | J24Li | J26Li |
| size | ||
| Maximum working height | 26.2m | 28.8m |
| Maximum platform height | 24.2m | 26.8m |
| Maximum homework radius | 20m | 22m |
| Platform size (length x width) | 2.4*0.9m | 2.4*0.9m |
| Vehicle length | 10.9m | 11.7m |
| Vehicle width | 2.49m | 2.49m |
| Vehicle height | 2.92m | 2.92m |
| wheelbase | 3.2m | 3.2m |
| Ground clearance (center) | 0.3m | 0.3m |
| Whole machine weight | 15100kg | 16600kg |
| performance | ||
| Rated bearing capacity | 300kg/450kg | 300kg/450kg |
| Number of people supported by the platform | 3 | 3 |
| Platform rotation range | ±80° | ±80° |
| Range of boom amplitude | ±70° | ±70° |
| Rotary table rotation | 360 ° continuous | 360 ° continuous |
| Driving speed (receiving status) | 5.5km/h | 5.5km/h |
| Driving and climbing slopes | 45% | 45% |
| Maximum working slope | 3° | 3° |
| Outer turning radius | 6.5m | 6.5m |
| Drive steering form | 4×2 | 4×2 |
| tyre | 385-45 | 385-45 |
| power | ||
| Battery | 80V/500Ah | 80V/500Ah |
| Pump motor power | 30kw | 30kw |
| Power of walking motor | 5.2kw | 5.2kw |
| control voltage | 12V | 12V |
| Charger | 80V/60A | 80V/60A |
| Hydraulic oil tank | 140L | 140L |
| Emergency power system | 12V electric | 12V electric |
| Lithium batteries | Optional | |
|
|
