| Brand Name: | Domestic |
| Model Number: | J16/J18/J20 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T |
Product Decription
The maximum working height of the electric straight arm high-altitude work platform is 18 meters to 28.8 meters, and the maximum load is 450 kilograms. According to your job requirements, LFP and LA batteries can be selected. In addition, it has strong four-wheel off-road capability and can adapt to various terrains. Energy saving, zero emissions, and low maintenance costs.

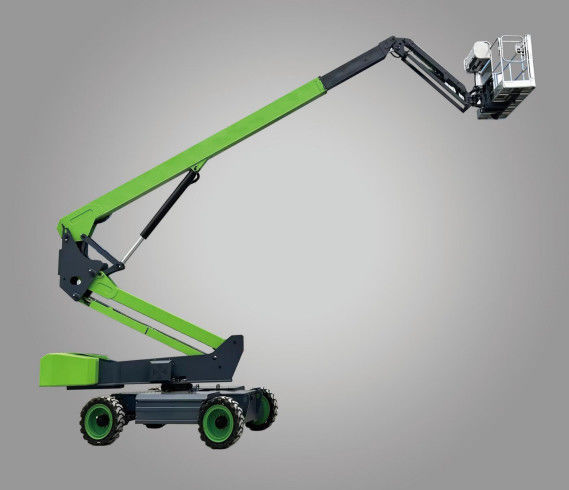

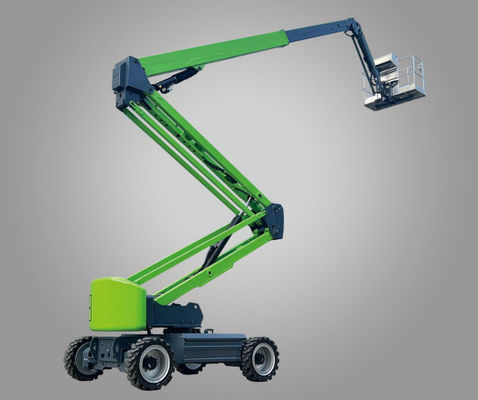

Product Picture
Parameters
| Model | J16 | J18 | J20 |
| size | |||
| Maximum working height | 18m | 20.5m | 21.6m |
| Maximum platform height | 16m | 18.5m | 19.6m |

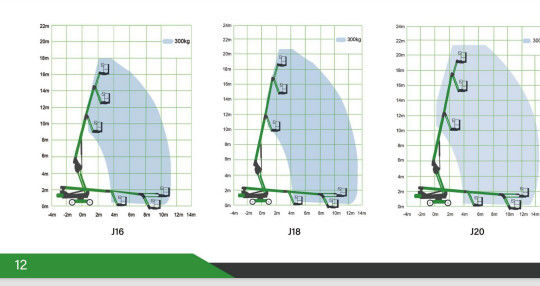

| Maximum homework radius | 11.2m | 13.2m | 14.5m |
| Platform size (length x width) | 1.8*0.9m | 1.8*0.75m | 1.8*0.75m |
| Vehicle length | 8.3m | 9.8m | 10.3m |
| Vehicle width | 2.49m | 2.49m | 2.49m |
| Vehicle height | 2.64m | 2.64m | 2.64m |
| wheelbase | 2.5m | 2.5m | 2.5m |
| Ground clearance (center) | 0.3m | 0.3m | 0.3m |
| Whole machine weight | 7800kg | 8520kg | 9100kg |
| performance | |||
| Rated bearing capacity | 300kg | 300kg | 300kg |
| Number of people supported by the platform | 3 | 3 | 3 |
| Platform rotation range | ±80° | ±80° | ±80° |
| Range of boom amplitude | ±70° | ±70° | ±70° |
| Rotary table rotation | 360 ° continuous | 360 ° continuous | 360 ° continuous |
| Driving speed (receiving status) | 4.8km/h | 4.8km/h | 4.8km/h |
| Driving and climbing slopes | 45% | 45% | 45% |
| Maximum working slope | 3° | 3° | 3° |
| Outer turning radius | 4.9m | 5m | 5m |
| Drive steering form | 4×2 | 4×2 | 4×2 |
| tyre | 835×295 | 33×12-20 | 33×12-20 |
| power | |||
| Battery | 48V/420Ah | 48V/420Ah | 48V/420Ah |
| Pump motor power | 12kw | 12kw | 12kw |
| Power of walking motor | 3.3kw | 3.3kw | 3.3kw |
| control voltage | 12V | 12V | 12V |
| Charger | 48V/60A | 48V/60A | 48V/60A |
| Hydraulic oil tank | 105L | 105L | 105L |
| Emergency power system | 12V electric | 12V electric | 12V electric |
| Lithium batteries | Optional | ||
|
|
