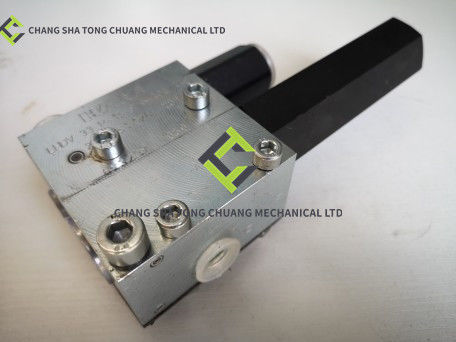

The Balance Valve LHDV 33P - 15 - N6 - 360/380 is an important component within the suite of Zoomlion concrete pump truck accessories, playing a vital role in optimizing the performance and functionality of these specialized construction vehicles.

Design and Construction

This balance valve is crafted with a meticulous design that combines functionality and durability. Its structure is compact yet robust, allowing it to be seamlessly incorporated into the hydraulic systems of Zoomlion concrete pump trucks without taking up excessive space. The valve's exterior is engineered to withstand the tough conditions of construction sites, such as exposure to dust, debris, and mechanical vibrations.

Manufactured from high-quality materials, including carefully selected alloys with excellent strength and corrosion-resistant properties, the LHDV 33P - 15 - N6 - 360/380 balance valve is built to last. This ensures that it can endure the demanding hydraulic pressures and continuous usage typical in concrete pumping operations over an extended period.

Working Principle

Operating under a sophisticated hydraulic principle, this balance valve functions as a key regulator within the pump truck's hydraulic system. It constantly monitors the pressure variations between different parts of the system. When the pressure difference across the valve approaches or exceeds the specified range related to its 360/380 bar rating, it precisely adjusts the flow of hydraulic fluid.

By carefully controlling the fluid flow, it maintains a stable pressure equilibrium within the system. This is crucial for preventing sudden pressure spikes or drops that could otherwise disrupt the smooth operation of the concrete pump truck's components, like the boom extension and concrete pumping mechanisms.

Performance Features

High Pressure Handling Capacity: With a rated pressure range of 360/380 bar, the balance valve is well-equipped to handle the significant hydraulic pressures generated during the concrete pumping process. It provides reliable performance even under heavy workloads, enabling the pump truck to efficiently transport concrete to various heights and distances on construction sites.

Accurate Flow Control: The valve is designed to offer precise control over the flow of hydraulic fluid. This precision is essential for regulating the speed and volume of concrete being pumped. It allows operators to achieve a consistent and uniform flow of concrete, which is vital for ensuring the quality of the poured concrete and the structural integrity of the construction projects.

Enhanced Stability and Reliability: Thanks to its refined design and high-quality manufacturing, the balance valve exhibits excellent stability during operation. It minimizes issues such as leaks, vibrations, and malfunctions, thereby enhancing the overall reliability of the concrete pump truck. This leads to reduced downtime and maintenance costs, facilitating the smooth progress of construction activities.

Compatibility: Specifically designed for Zoomlion concrete pump trucks, the LHDV 33P - 15 - N6 - 360/380 balance valve demonstrates excellent compatibility with different models of the brand's pump trucks. It can be easily integrated into the existing hydraulic systems, simplifying the installation and replacement processes for maintenance technicians.
