Design and Structure

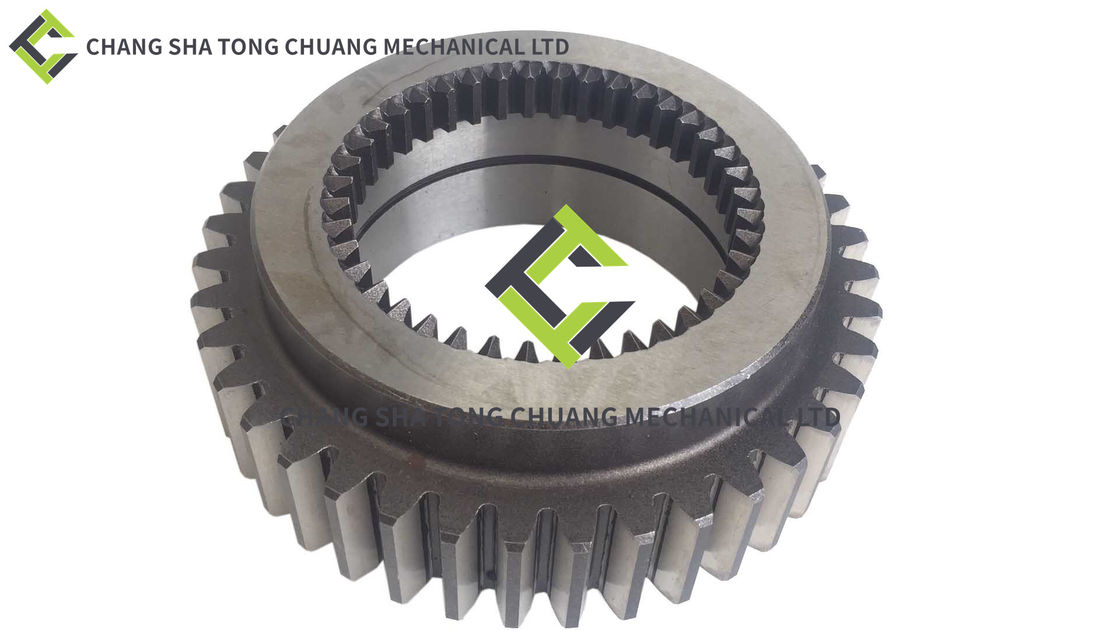

Sophisticated Design: This gear is designed with precision engineering to meet the specific requirements of the concrete pump truck's power transmission. The 40 - tooth configuration is carefully calculated to ensure the correct gear ratio and efficient power transfer. The shape and dimensions of the gear are optimized to fit precisely within the transfer case housing, allowing for smooth meshing with other gears and components.

High - Quality Material: It is fabricated from premium - quality materials that possess excellent mechanical properties. The material is chosen to provide high strength and wear - resistance, enabling the gear to withstand the heavy loads and continuous operation typical of a concrete pump truck. The use of such materials also helps to minimize the risk of deformation or premature wear due to the high - torque and high - speed conditions in which the gear operates.

Working Principle

Power Transmission and Gear Meshing: The main function of this big gear is to transmit power from the input source (usually the engine) to other parts of the drivetrain through a series of gear meshing operations. As the gear rotates, it engages with other gears in the transfer case, changing the speed and torque according to the designed gear ratio. The 40 - tooth design plays a vital role in determining the rotational speed and torque output, which is crucial for the proper operation of the concrete pump truck's hydraulic systems and other mechanical components.

Synchronized Movement: The gear operates in a synchronized manner with other components in the transfer case. The precise teeth design and manufacturing tolerances ensure that the gear meshes smoothly with its mating gears, preventing any jerky or inconsistent movement. This synchronized operation is essential for the stable and efficient operation of the pump truck, as it affects the overall performance of the concrete pumping process and the movement of the boom.

Performance Features

High - Torque Transmission: With its robust design and 40 - tooth configuration, the gear is capable of transmitting high levels of torque. This is a critical feature as the concrete pump truck requires significant torque to drive the pumping mechanism and move heavy loads. The gear's ability to handle high - torque conditions ensures that the power is effectively transferred to the necessary components without slippage or damage.

Durability and Longevity: Thanks to the high - quality materials and precise manufacturing, the gear offers excellent durability. It can endure the harsh operating conditions of a construction site, including exposure to dust, vibrations, and extreme temperatures. The long - lasting nature of the gear reduces the frequency of replacements and maintenance, saving both time and costs for the users.

Compatibility: This gear is designed to be compatible with the Zoomlion concrete pump truck's transfer case system. It is engineered to fit and work in harmony with other components in the drivetrain, ensuring a seamless integration and reliable performance. This compatibility simplifies the installation and replacement process, making it more convenient for maintenance personnel.
