Design and Structure

Size Specification: The "125B" in the product name indicates a specific size dimension that is designed to fit pipes of a particular diameter in the Zoomlion concrete pump truck's piping system. This precise sizing ensures a snug and secure fit around the pipes, enabling it to perform its clamping function effectively.

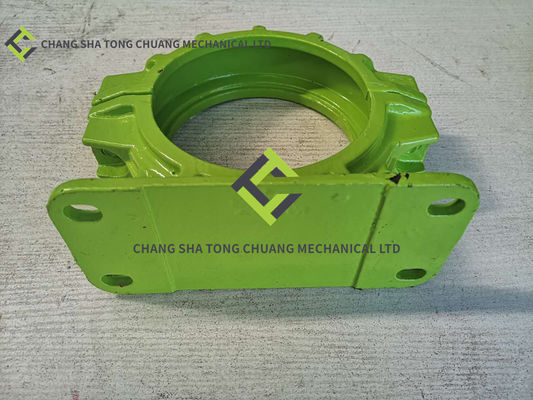

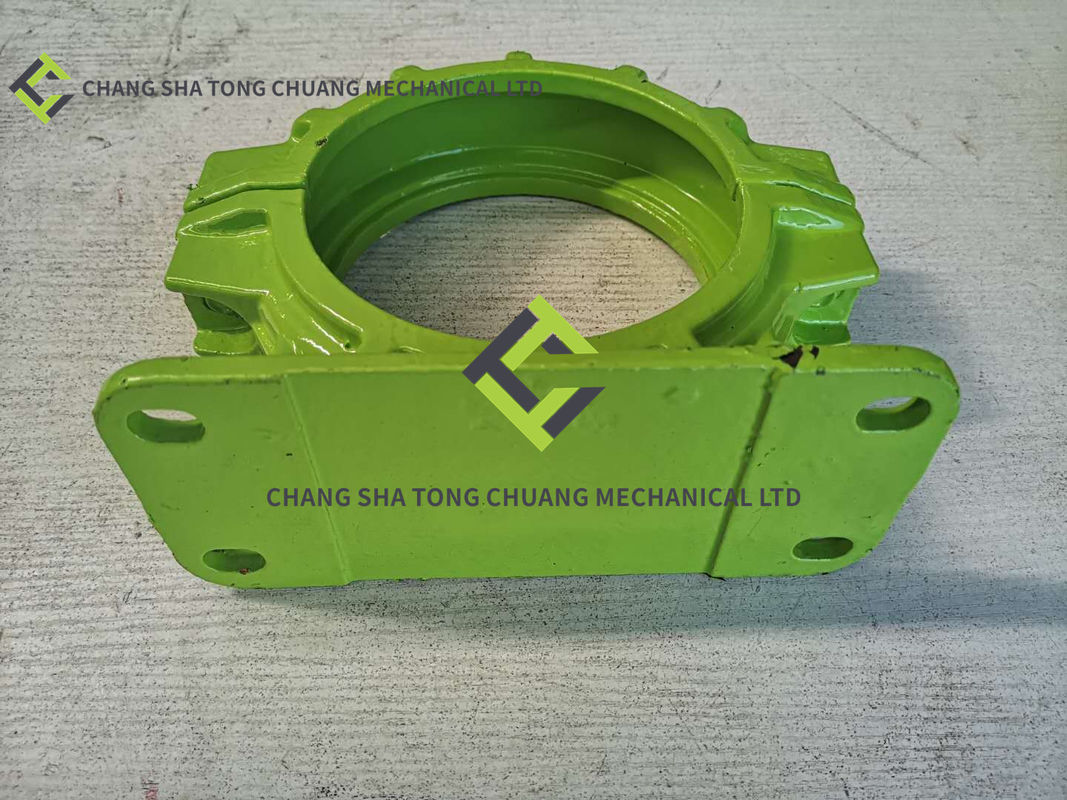

Four - Hole and Base Design: The pipe clamp features a base and four holes. The base provides a stable platform for the clamp to rest on and helps in evenly distributing the clamping force. The four - hole configuration offers enhanced stability and versatility during installation. These holes are designed to accommodate bolts or other fastening devices, allowing for a more secure attachment to the supporting structure or adjacent components. The overall design of the clamp with its base and four holes is engineered to withstand the rigors of the pump truck's operation and keep the pipes firmly in place.

Working Principle

Pipe Clamping: The primary function of this pipe clamp is to hold the pipes securely in position. When the bolts are inserted through the four holes and tightened, the clamp exerts a uniform pressure around the pipe's circumference. This pressure creates a strong frictional force that prevents the pipe from moving, vibrating, or disengaging during the operation of the concrete pump truck. The precise fit and the clamping force are crucial in maintaining the integrity of the pipeline system, especially considering the high - pressure environment and the mechanical vibrations that occur during concrete pumping.

Stress Distribution: The base of the clamp plays a vital role in distributing the stress and load that the pipe may experience. By providing a larger contact area with the supporting structure, it helps to reduce the pressure points on the pipe and the clamp itself. This stress - distribution mechanism safeguards the pipe and the clamp from premature wear and damage, ensuring a longer service life and reliable performance.

Performance Features

High - Strength and Durability: Made from high - quality materials, the 125B ZL pipe clamp offers excellent strength and durability. It can withstand the significant forces exerted by the flowing concrete, the vibrations of the pump truck, and the external mechanical stresses. The robust construction ensures that it maintains its clamping function over an extended period, reducing the need for frequent replacements and minimizing downtime for maintenance.

Corrosion Resistance: In the harsh environment of a concrete pump truck, where the clamp may be exposed to moisture, chemicals from the concrete, and other corrosive substances, it is designed to have good corrosion - resistance properties. This resistance helps to preserve the structural integrity of the clamp and its functionality, even after prolonged exposure to such challenging conditions.

Precise Fit and Compatibility: The pipe clamp is designed to have a precise fit with the pipes of the Zoomlion concrete pump truck's piping system. Its compatibility with the specific pipe diameter (as indicated by 125B) and the overall system design ensures seamless integration and efficient operation. It helps to maintain the correct alignment and connection of the pipes, which is essential for the smooth flow of concrete and the overall performance of the pump truck.
