| Brand Name: | OEM |

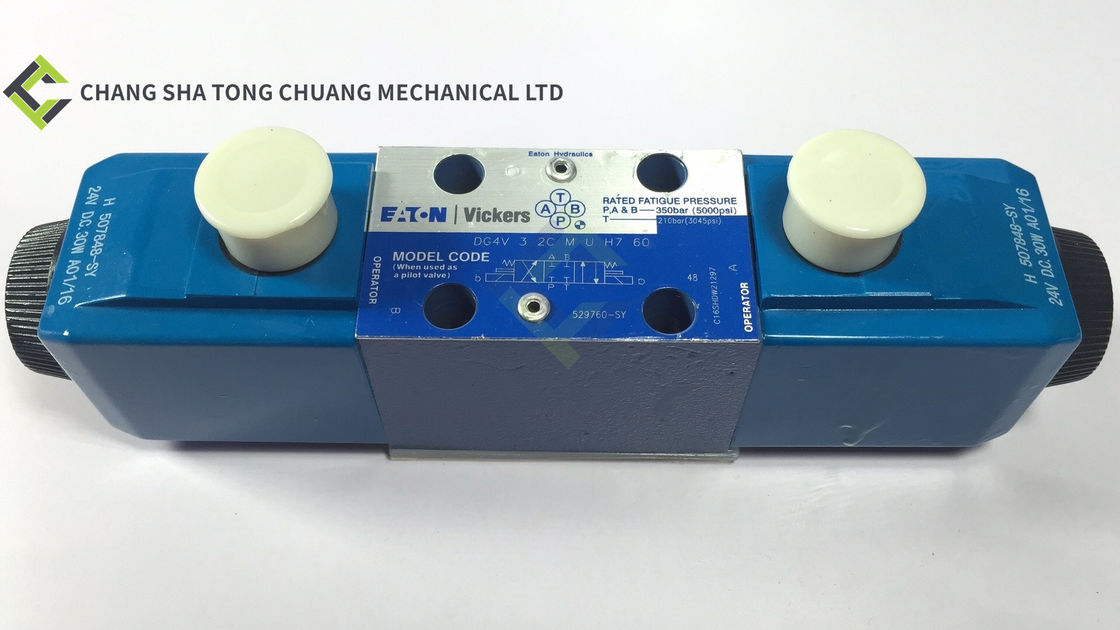

| Model Number: | DG4V32CMUH760 (O-type) |
| MOQ: | 1piece |
| Price: | Negotiable |
| Delivery Time: | 6days |
| Payment Terms: | L/C, T/T |
Design and Structure
Valve Body: Crafted from high-strength and corrosion-resistant materials, the valve body is engineered to endure the high-pressure and high-stress environment of concrete pump truck hydraulic systems. Its robust construction guarantees long-term reliability and stability, even under harsh working conditions.
Electromagnetic Actuator: Equipped with a high-performance electromagnetic actuator, this valve can quickly and accurately convert electrical signals into mechanical motion. The actuator is designed for low power consumption and high efficiency, capable of withstanding frequent switching operations and providing consistent performance over an extended service life.
Sealing System: The valve features an advanced sealing system with high-quality seals. These seals are designed to provide excellent resistance to oil leakage, wear, and aging, ensuring the integrity and efficiency of the hydraulic system. They maintain the proper pressure and flow characteristics within the system, even under extreme operating conditions.
Working Principle
Electromagnetic Control: When an electrical signal is applied to the electromagnetic coil, a magnetic field is generated, which attracts the armature and causes the valve spool to move. By precisely controlling the electrical signal, the position of the valve spool can be accurately adjusted, thereby determining the flow direction of the hydraulic fluid within the valve.
Flow Regulation: In the case of Type O, the internal structure of the valve is designed to control the flow of hydraulic fluid in a specific way. It can direct the fluid to different ports as needed, enabling the precise control of various hydraulic actuators in the concrete pump truck, such as the boom cylinders and slewing mechanisms.
Performance Features
High Pressure Resistance: The DG4V32CMUH760 (Type O) is capable of withstanding high hydraulic pressures, meeting the demanding requirements of concrete pump truck hydraulic systems. It can operate reliably at the high pressures required for efficient concrete pumping and boom operation, ensuring the safety and performance of the entire system.
Precise Flow Control: With its advanced design and manufacturing precision, this valve offers excellent flow control capabilities. It can accurately adjust the flow rate of the hydraulic fluid, enabling smooth and precise movement of the pump truck's hydraulic components. This is essential for achieving accurate concrete placement and boom positioning.
Fast Response: The valve is designed to have a rapid response time, allowing for quick changes in the flow direction of the hydraulic fluid. This ensures that the concrete pump truck's hydraulic system can respond promptly to operator commands, enhancing the overall operational efficiency and maneuverability of the vehicle.
Low Leakage: Thanks to its high-quality sealing system, the DG4V32CMUH760 (Type O) has extremely low leakage rates. This helps to maintain the efficiency of the hydraulic system by minimizing fluid loss and ensuring that the hydraulic power is transmitted effectively to the relevant components.
|
|
