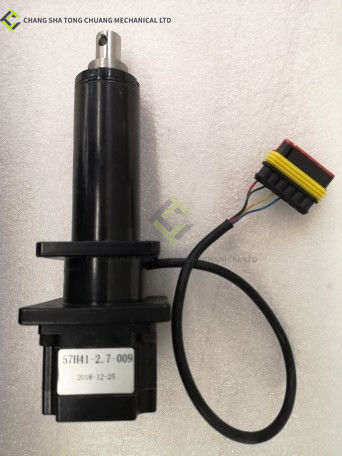

This stepper motor is designed with a compact structure, specifically tailored to fit the space requirements of concrete on-board pumps. Its dimensions are optimized to ensure seamless integration into the pump's mechanical system.

It is constructed with high-quality materials that guarantee durability and reliability even in the harsh working conditions of concrete pumping operations, which often involve vibrations, dust, and varying temperatures.

Technical Specifications

The motor has a step angle that allows for precise positioning and control. This is crucial for the accurate operation of the concrete on-board pump, enabling functions such as metering and dispensing of concrete with high precision.

It has a rated torque of 2.7 Nm, which provides sufficient power to drive the relevant components of the on-board pump. This torque capacity ensures smooth and efficient operation, even when handling heavy loads.

The motor operates at a rated voltage that is compatible with the electrical system of ZOOMLION concrete on-board pumps, ensuring stable performance and easy integration.

Function and Application

In the concrete on-board pump, this stepper motor is primarily used to control the movement and operation of various components, such as the pump's piston or the material feeding mechanism.

It enables accurate and controlled movement, which is essential for maintaining the proper flow rate and pressure of the concrete during pumping. This, in turn, helps to ensure the quality and efficiency of the concrete pumping process.
