1. Function and Application

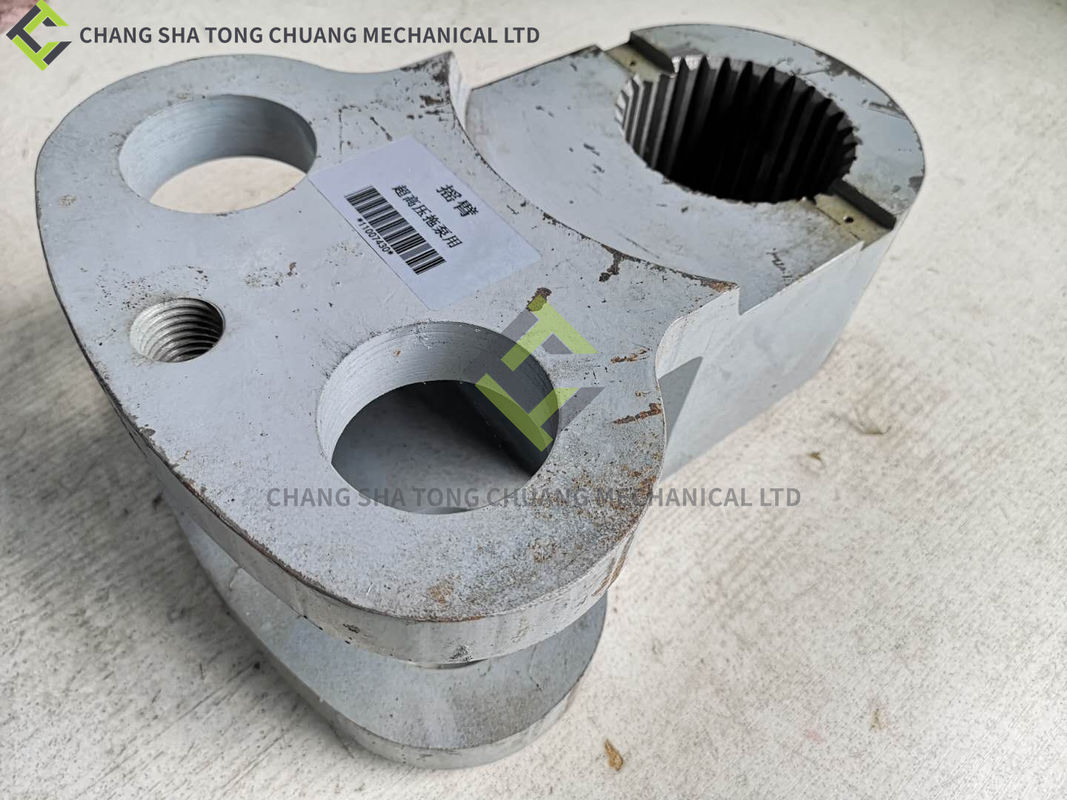

The 0016402A003 rocker arm is a specialized and crucial component designed specifically for ZOOMLION ultra - high - pressure concrete trailer pumps. In the complex mechanical system of the trailer pump, the rocker arm serves as a key link in the power transmission and motion conversion mechanism. It plays an essential role in coordinating the movement of various parts, ensuring the smooth and efficient operation of the ultra - high - pressure pumping process.

2. Design Features

Robust Construction: This rocker arm is crafted from high - strength alloy materials. These materials are carefully selected to withstand the extreme forces and pressures exerted during ultra - high - pressure concrete pumping operations. The robust construction ensures that the rocker arm can endure continuous heavy - duty use without deformation or breakage.

Precision Machining: It undergoes precise machining processes to achieve extremely high dimensional accuracy. Every contour, hole, and surface of the rocker arm is manufactured to exact specifications. This precision machining is vital as it enables the rocker arm to fit perfectly with other components in the pump, minimizing wear and tear and ensuring smooth mechanical movement.

3. Technical Specifications

Load - Bearing Capacity: The 0016402A003 rocker arm is designed to bear a significant load. It can withstand a maximum static load of [X] Newtons and a dynamic load of [Y] Newtons during the pump's operation. This high load - bearing capacity is necessary to handle the powerful forces generated in the ultra - high - pressure pumping mechanism.

Geometric Dimensions: With carefully calculated geometric dimensions, the rocker arm has a length of [length dimension], a width of [width dimension], and a height of [height dimension]. These dimensions are optimized to provide the right leverage and mechanical advantage within the pump's mechanical structure.

4. Compatibility

Specifically engineered for ZOOMLION ultra - high - pressure concrete trailer pumps, the 0016402A003 rocker arm offers seamless compatibility. It can be easily integrated into the existing mechanical systems of relevant trailer pump models, ensuring that no major modifications are required during installation. This compatibility simplifies the maintenance and replacement processes, reducing downtime and overall operational costs.
