Used Concrete Pump Truck
Created with Pixso. Re-Manufactured Line Pump SY5133THB-9018C-6D

Re-Manufactured Line Pump SY5133THB-9018C-6D

Brand Name: Sany heavy industry
Model Number: SY5133THB-9018C-6D
MOQ: 1
Price: Negotiable
Delivery Time: 10 days
Payment Terms: T/T、L/C、D/A、D/P
Detail Information
Place of Origin:
Changsha,Hunan,China
Packaging Details:
Standard Export Package
Supply Ability:
2pcs/month
Highlight:

SY5133THB-9018C-6D

,

186kw Line Pump

,

Used Concrete Pump Truck 90km/h

Product Description



Sany Heavy Industry SY5133THB-9018C-6D vehicle pump parameter configuration
Conventional parameters:
unit type SY5133THB-9018C-6D Model abbreviation 5133
Vehicle parameters:
Vehicle Weight (kg) 12855 Overall dimension (length, width and height) (mm) 9240×2470×3090
dynamical system:
power rating (kW) 186 Hydraulic oil tank volume (L) 700
Pump system parameters:
Max Output Quantity(Low / High Pressure) (m³ / h) 100/55 Max Output Pressure(Low / High Pressure)(Mpa) 9/18
Theoretical pumping times (low / high pressure) (times / min) 25/14 Concrete cylinder cylinder diameter stroke (mm) 230×1600
bucket capacity (m³) 0.6 Feed height (mm) 1500
Chassis parameters:
Chassis brand Sany heavy industry Chassis model SYM1161T
engine type ISDe180 40 Engine power (kW) 132
engine displacement (L) 4.5 Maximum speed (km/h) 90
wheel base (mm) 4700 Fuel tank volume (L) 300

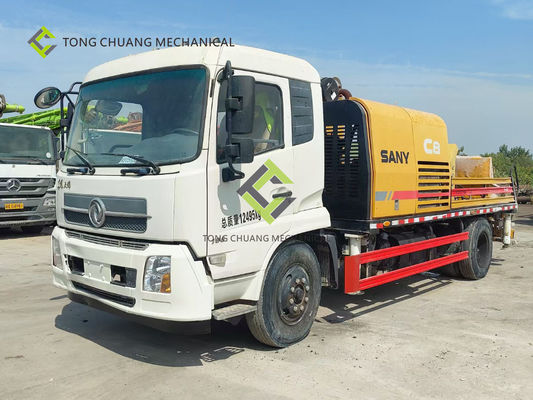

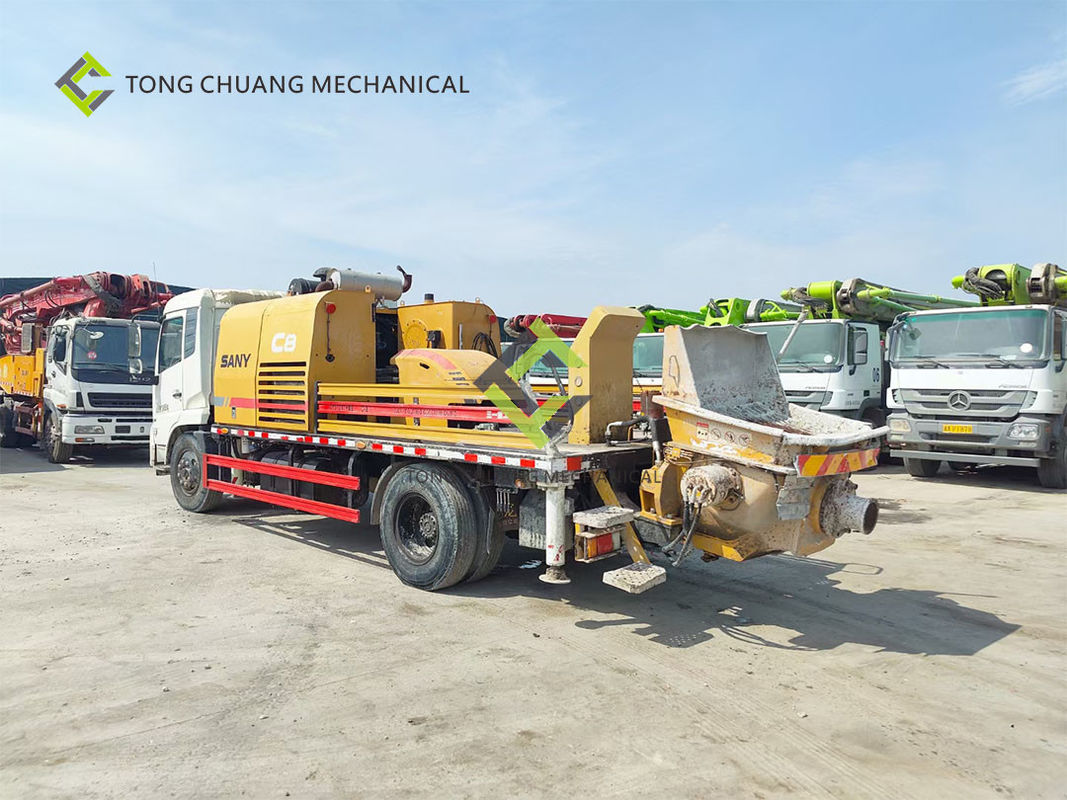

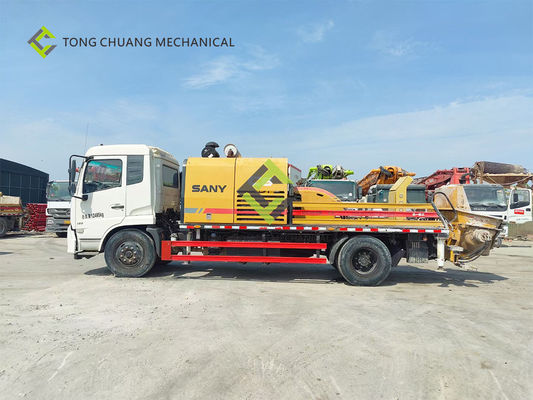

Re-Manufactured Line Pump SY5133THB-9018C-6D 0

Re-Manufactured Line Pump SY5133THB-9018C-6D 1

Re-Manufactured Line Pump SY5133THB-9018C-6D 2

Re-Manufactured Line Pump SY5133THB-9018C-6D 3

Re-Manufactured Line Pump SY5133THB-9018C-6D 4

Product features and advantages:

1:The diesel engine adopts world famous brands such as DEUTZ, which has strong power, energy conservation and environmental protection;The motor is selected from domestic famous brand, which is stable and reliable. The key hydraulic components such as pumps and valves use international famous brands to ensure the high stability of the hydraulic system.
2:The electrical system adopts advanced bus control technology, high-quality industrial controller, display screen and remote controller, with higher control accuracy, better stability and higher reliability. The unique flexible reversing and reversing shock absorption system of the distribution buffer technology not only ensures the large swing torque, but also greatly reduces the swing impact, improves the service life of the swing cylinder and S tube, and makes the vehicle work more stable.
3:The electrical system adopts advanced bus control technology, high-quality industrial controller, display screen and remote controller, with higher control accuracy, better stability and higher reliability.
4:The unique flexible reversing and reversing shock absorption system of the distribution buffer technology not only ensures the large swing torque, but also greatly reduces the swing impact, improves the service life of the swing cylinder and S tube, and makes the vehicle work more stable.
