| Brand Name: | Sany heavy industry |
| Model Number: | SYM5442THBDZ 620C-10A |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 31 days |
| Payment Terms: | T/T、L/C、D/A、D/P |
Product features and advantages:
1:Chassis engine maintenance is in good condition without any repairs
2:Hydraulic power unit, hydraulic electromagnetic reversing valve are all original parts have not been replaced

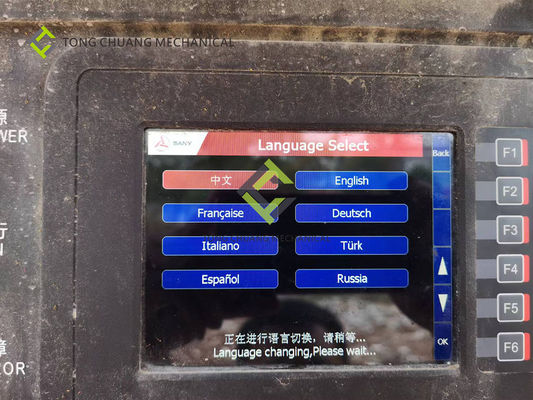

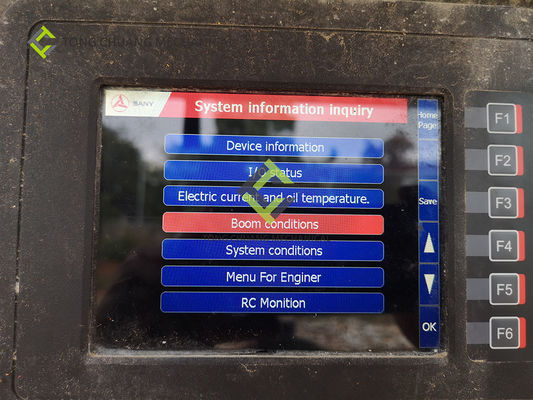

3:The LCD screen is simple to operate, which can monitor the operation status of the pump truck in real time, check the fault code and working time, and can freely switch between Chinese and English
| Chassis parameter configuration | ||||||||||
| model | SYM5442THBDZ 620C-10A | Model abbreviation | SYM5442THBDZ | |||||||
| Vehicle Weight (kg) |
44000KG |
Dimensions(L*W*H)(mm) | 14580*2550*4000 | |||||||
| Chassis | Mercedes-Benz Arocs 4146 8X4 | engine type | OM470LA.6-56 | |||||||
| Engine Power(kW) | 335/1600kW/rpm | Emission Standard | Ⅵ | |||||||
| Fuel tank volume | 390L | output volume | 10.677L | |||||||
| Color | red+ white+yellow | maximum speed |
90km/h
|
|||||||
| Pump system parameter information | ||||||||||
| Vertical Reach | 61.1meters | Horizontal Reach | 55.9meters | |||||||
| system pressure |
32Mpa |
Main oil pump brand | kawasaki | |||||||
| Max Output Quantity(Low / High Pressure) (m³ / h) | 180/120 m³ / h | Max Output Pressure(Low / High Pressure)(Mpa) | 8.4/13 Mpa | |||||||
| Theoretical pumping times (low / high pressure) (times / min) | 29/20 t/min | Concrete cylinder cylinder diameter stroke (mm) | 260×2245 | |||||||
|
