| Brand Name: | Zoomlion |
| Model Number: | ZLJ5440THBBE |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 16 days |
| Payment Terms: | T/T、L/C、D/A、D/P |
Product features and advantages:

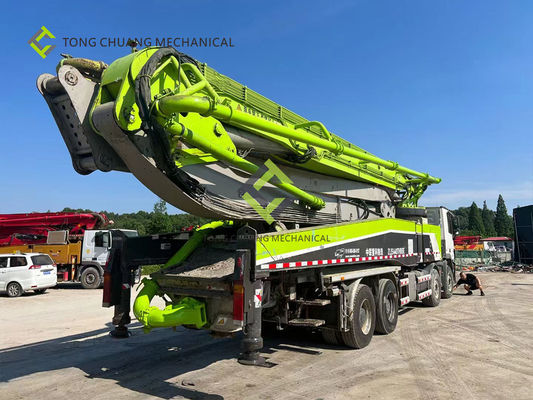

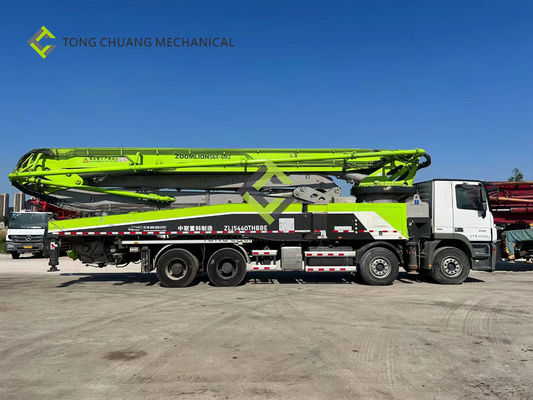

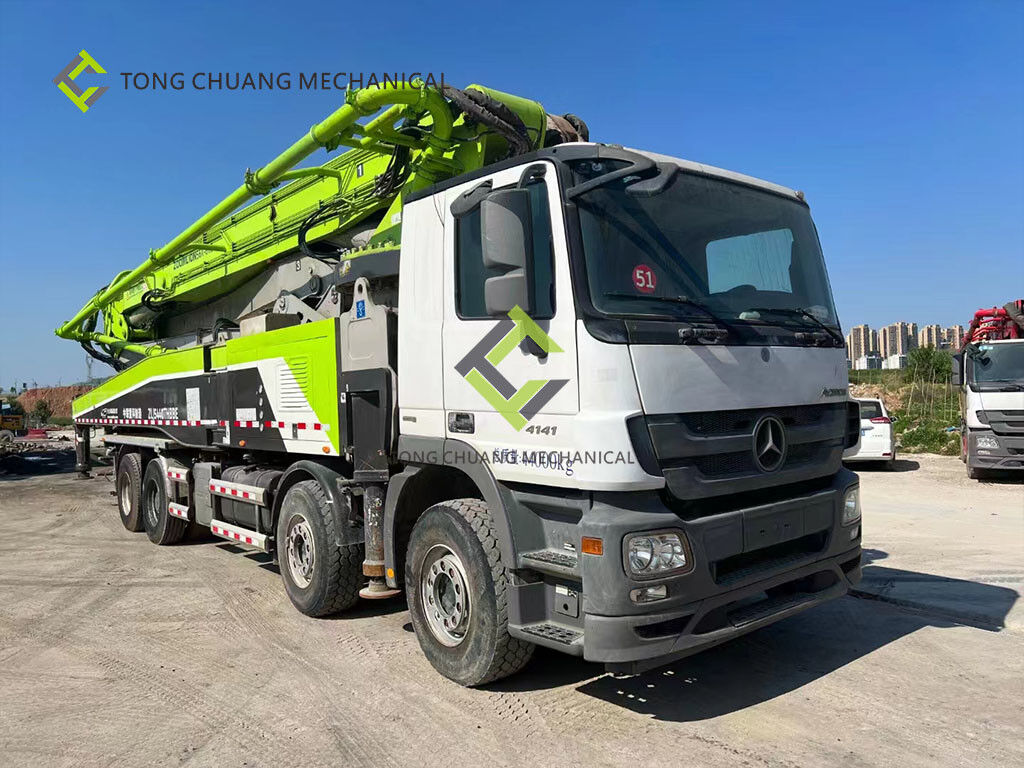

1:ZLJ5440THBBE The Four-bridge 56-meter pump truck is one of the 4.0 products of Zoomlion. Equipped with high precision and high efficiency, high pressure pumping system, high efficiency, low energy consumption. Configuration of the world's leading boom active vibration reduction technology, the construction is safer. Optimal fatigue design of structural parts and welds to prolong the service life. The adaptive pumping control technology of all working conditions should break through the pumping ability of poor materials and overcome the common problem of "picky eating" in the pumping system. A total of 62 products were produced. In 2017, it won the "Product Innovation Award" of Hunan Province.
| Chassis parameter configuration | ||||||||||
|
unit type |
ZLJ5440THBBE |
Model abbreviation |
4-axes 56 meters |
|||||||
|
Vehicle Weight (kg) |
44000KG |
Dimensions(L*W*H)(mm) |
13915 * 2530* 4000 |
|||||||
|
Chassis |
Mercedes Benz Actros 4141 8X4 |
engine type |
OM501 LA V6 |
|||||||
|
Engine Power(kW) |
305kw/1800rpm |
Emission Standard |
VI |
|||||||
|
wheel base (mm) |
2020+4280+1350 |
output volume |
11.946L |
|||||||
|
Color |
green+white |
maximum speed |
101km/h
|
|||||||
|
Vertical Reach |
56 meters |
Horizontal Reach |
51 meters |
|||||||
| Pump system parameter information | ||||||||||
| Max Output Quantity (m³ / h) | 181m³ / h | Max Output Pressure (Mpa) | 11.4 Mpa | |||||||
| Pumping frequency (times / min) | 26 t/min | Concrete cylinder cylinder diameter stroke (mm) | 260×2250 | |||||||
| Arm frame structure form | 56X-6RZ | Rated Working pressure | 42Mpa | |||||||
|
|
