| Brand Name: | Zoomlion |
| Model Number: | ZLJ5442THBBE 59X-6RZ |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 15day |
| Payment Terms: | L/C,D/A,D/P,T/T |
Zoomlion Heavy Industry Concrete Pump Truck parameter information |
|
| Chassis model | Arocs 4143 8X4 |
| Specification and model | ZLJ5442THBBE 59X-6RZ |
| Arm structure form | 59X-6RZ |
| Vertical height of boom | 58.1 m |
| Vehicle mass | 43870kg |
| Overall dimensions of the whole vehicle (length x width x height) | 14690*2530*4000 |
| Maximum theoretical conveying capacity (Low pressure/high pressure) | 200/140 m³/h |
| Maximum outlet pressure of concrete (Low pressure/high pressure) | 8.3/12Mpa |
| Hydraulic system type | Closed |
| Maximum fabric (height/radius/depth) | 58.1/52.9/41.7 m |
| After-sale service:More than ten years of professional service engineer free online support and video support! Accessories support! | |
|
Product features and advantages The special function of this vehicle model is to pump concrete, and the special device is the concrete pumping unit, support legs, and distribution rods (boom, concrete pipe); Maximum net power of the engine: 315kW; The first and second axle tires are 385/65R22.5; The third and fourth axle tires are 315/80R22.5; Rearward 2000mm; The material used for the side protection device of the vehicle is aluminum alloy, and the connection method is to connect the bracket with bolts, and the bracket is connected to the chassis beam with bolts; The rear dedicated device structure has the function of rear lower protection device, with a height of 495mm from the ground; The ABS model is EB5006, and the ABS manufacturer is WABCO. |
|

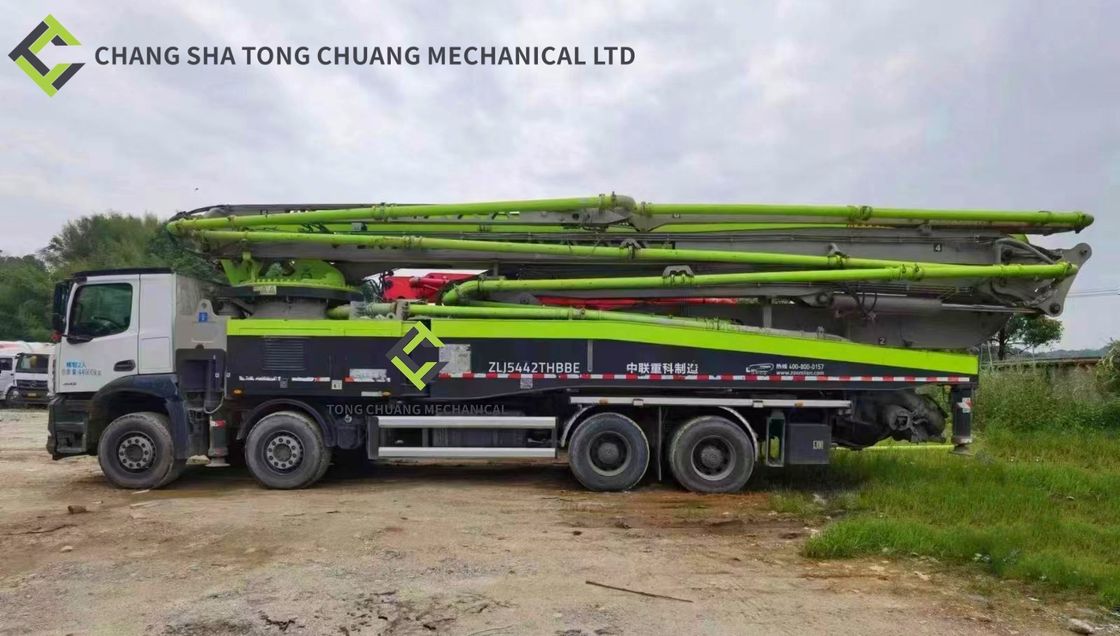

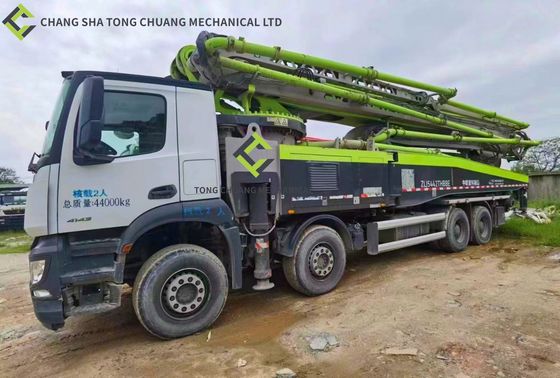

The pictures as follows:
|
|
