| Brand Name: | SANY |
| Model Number: | SYM5340THB 490C-8 |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 4days |
| Payment Terms: | T/T、L/C、D/A、D/P |
Product features and advantages:
1: The SYM5340THB 490C-8 pump truck features one click fixed arm technology, intelligent vibration reduction technology, energy-saving technology, and rotational anti swing control technology.
2. Intelligent vibration reduction technology for boom: Perfect integration of German Putzmeister technology, effectively reducing boom shaking during pumping, reducing amplitude by 50%, and ensuring stable grip of the end hose.
3. Energy saving technology: fully integrated with German Putzmeister technology, with 29 commutations per minute (when the system pressure is 12MPa), the pumping efficiency can be increased by up to 25%, and the fuel consumption can be reduced by up to 10%.
| Pump tuck parameters | ||||||||||
|
Unit type |
SYM5340THB 490C-8 |
Engine model |
D12C5-490E0/ P11C-WE |
|||||||
|
Vehicle Weight (kg) |
43870 |
Dimensions(L*W*H)(mm) |
12380*2550*4000mm |
|||||||
|
Chassis |
Sany |
Chassis model |
SYM5350THB1E |
|||||||
|
Engine Power(kW) |
348KW (Sany Deutz)/304KW (Hino) |
Engine displacement (cc) |
12.12 (Sanyi Deutz)/10.52 (Hino) L |
|||||||
|
Quantity of concrete delivered |
50000cubic meters |
maximum speed |
90km/h |
|||||||
|
Vertical Reach |
48.6meters |
Horizontal Reach |
43.6meters |
|||||||
| Pump system parameter information | ||||||||||
| Low pressure theoretical displacement of concrete(m³/h) | 170 | Theoretical pumping pressure high pressure | 12Mpa | |||||||
| Water tank volume (L) | 620 | Concrete cylinder cylinder diameter stroke (mm) | 260×1900 | |||||||
| Hydraulic system | open type | Fuel tank volume (L) | 680 | |||||||
| Arm frame, support leg parameters | ||||||||||
| Vertical depth of boom | 30.8m | Minimum unfolding height | 13.9m | |||||||
| Length of the first arm | 9760mm | Angle of the first arm | 89 ° | |||||||
| Second arm length | 7670mm | Second arm angle | 180 ° | |||||||
| Third arm length | 7410mm | Third arm angle | 180 ° | |||||||
| Fourth arm length | 9670mm | Fourth arm angle | 235 ° | |||||||
| Fifth arm length | 10060mm | Fifth arm angle | 215° | |||||||

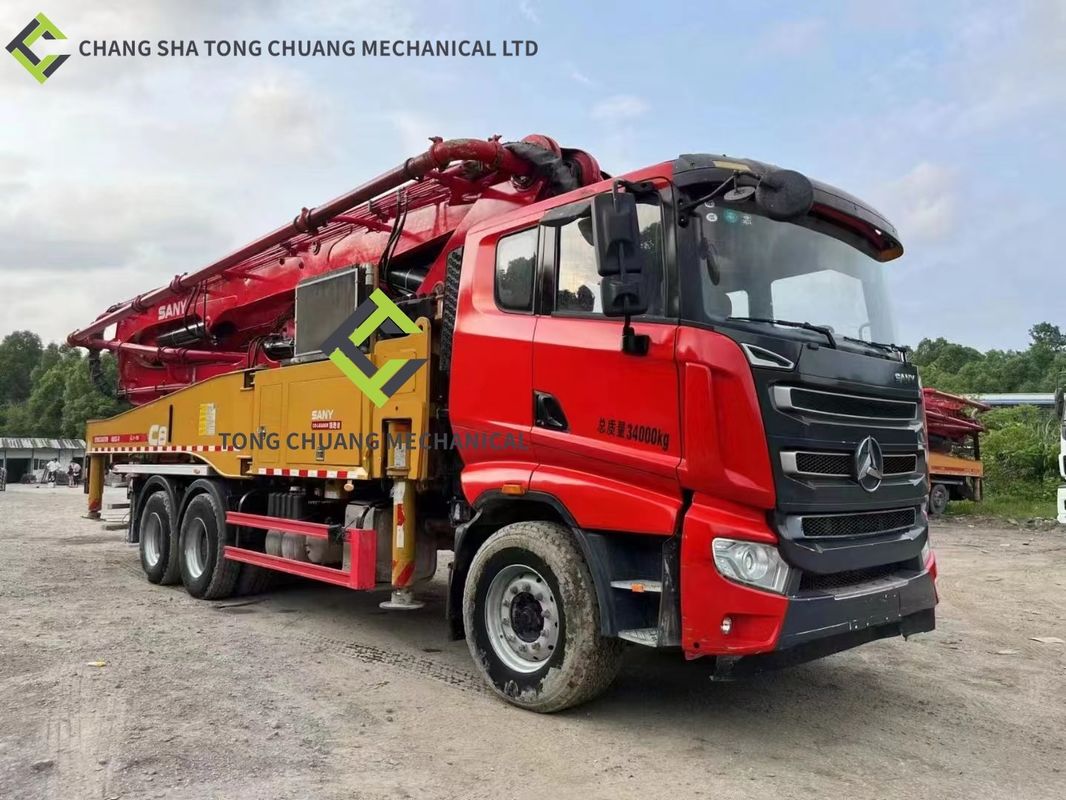

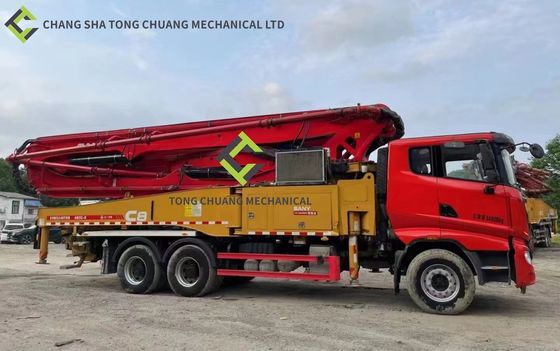

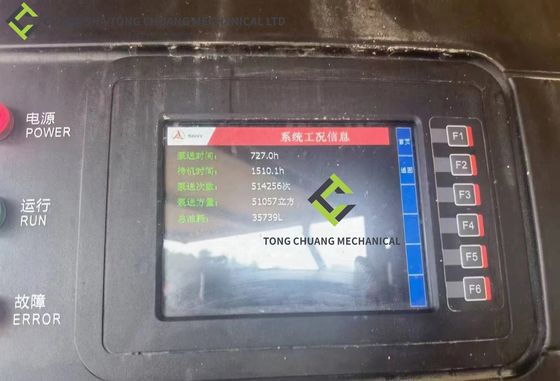

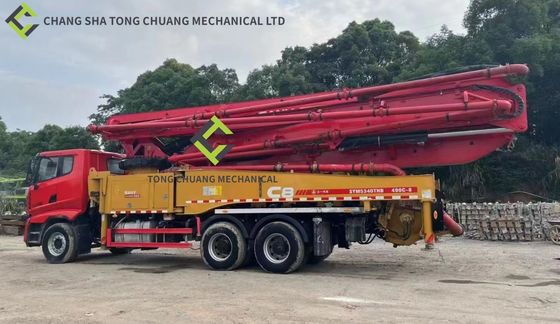

The pictures as follows:
|
|
